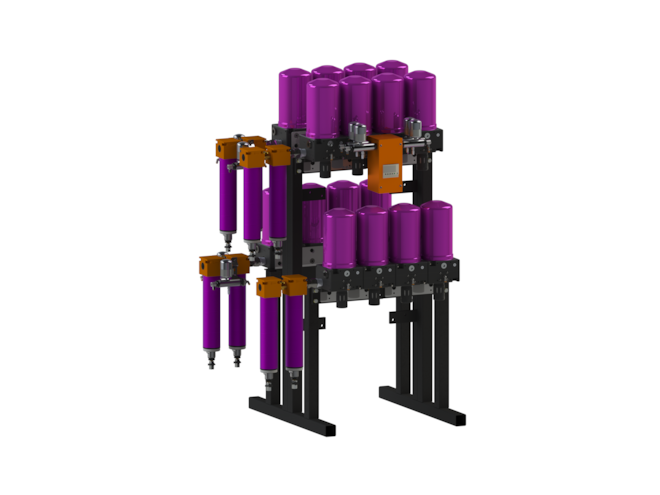

TSUNAMI Ultra Series Rail-Mounted Regenerative Dryer - 400 CFM (100HP)

Technical Details

Model: 21999-0760
Max CFM: 400
Size: 100HP
Towers: 16
Drain Type: Pneumatic
Port Size: 1” NPT
Weight: 534 lbs
Dimensions (HWD): 66” x 36” x 42”
Max Air Inlet Temperature: 150F
Operating Pressure: 175PSI
Power Requirement: 120V

Ultra Series Rail-Mounted Regenerative Dryers

Tsunami rail mounted regenerative dryers are built to withstand the largest surges of contamination. Similar to other Tsunami drying systems, these dual-inlet units are built as complete packages. Choose from 160 - 400 CFM units or build your own.

Features:

• 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
• Molecular Sieve Desiccant
• Programmable Logic Controller
• Automatic Pneumatic Drains
• Purge Exhaust Mufflers
• Auxiliary port allows for filtered but not dried air downstream
• Heater pads available for cold temp applications
• Optional: C1D2 Compatible for hazardous locations

Benefits:

Dryer Performance:

• Low relative humidity - down to .01% RH
• Dew points down to -80F
• Easy, low-cost maintenance - under $100/year average

Filter Performance:

1st Stage Water Separator:

• Removes liquid water
• Filters particulate down to 10 micron

2nd Stage Oil Coalescing Filter:

• Removes bulk oils and aerosols
• Filters particulate down to .01 micron

Fitted for 40, 50, 75, or 100 HP Compressors

Water Separator Replacement Element: #21999-0228
Oil Coalescing Filter Replacement Element: #21999-0202-Z-SP

Ultra Rail-Mounted Series Air Consumption Averages and Cycle Time
