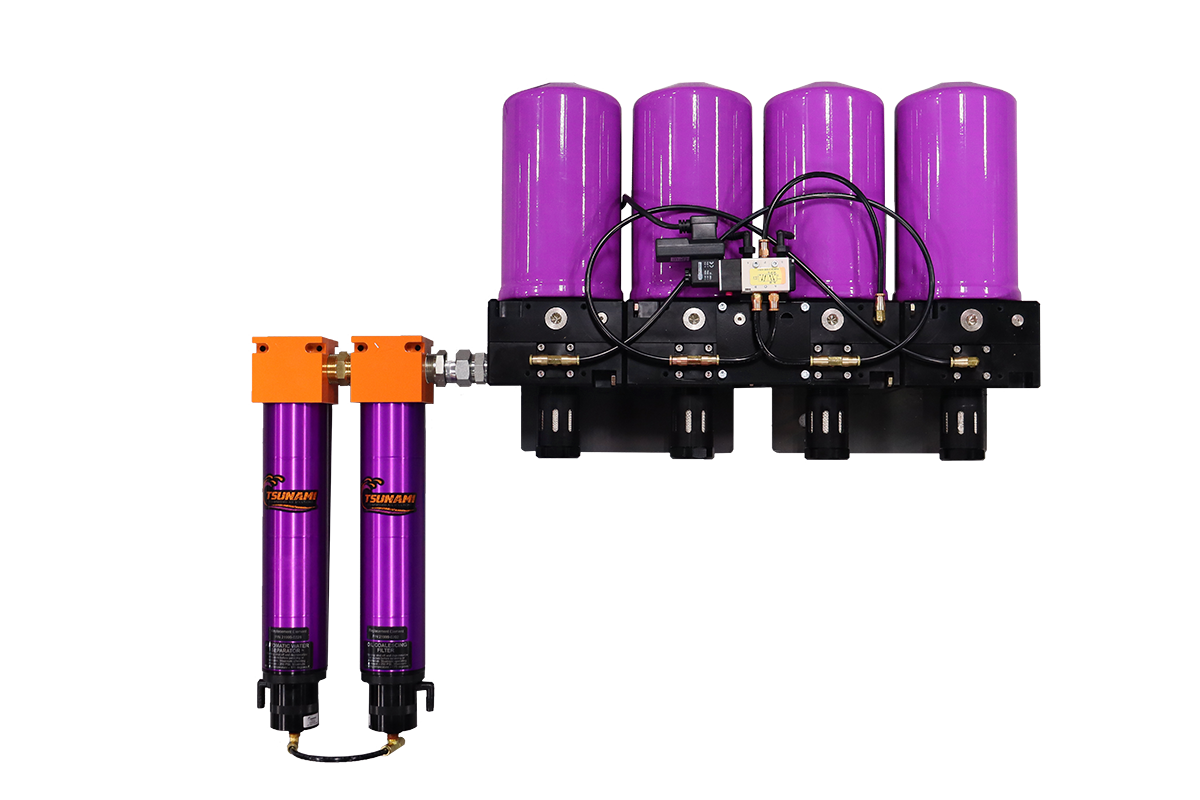

TSUNAMI PURE-20 SERIES
80 CFM COMPRESSED AIR DRYER
REGENERATIVE DESICCANT
The Pure-20 Series Regenerative Dryer is rated for 80 CFM airflow, and fitted for 20 Hp compressors. The Pure-20 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.
Features:
- 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
- Molecular Sieve Desiccant
- Solenoid Valve Timer
- Automatic Drains
- Purge Exhaust Mufflers
- Wall Mounting Brackets
- Optional: C1D2 Compatible for hazardous locations
- Heater pads available for cold temp applications
Benefits:
- Dryer Performance:
- Low relative humidity - down to .01% RH
- Dew points down to -80��F
- Easy, low-cost maintenance - under $100/year average
- Filter Performance:
- 1st Stage Water Separator:
- Removes liquid water
- Filters particulate down to 10 micron
- 2nd Stage Oil Coalescing Filter:
- Removes bulk oils and aerosols
- Filters particulate down to .01 micron
Specifications:
- Min/Max Air Inlet Temperature: 150��F
- Min/Max Operating Pressure: 175
- Power Requirement: 120V
- Compressor Size: 20 Hp
- Water Separator: #21999-1034
- Replacement Element: #21999-0228
- Oil Coalescing Filter: #21999-1034-Z-FD
- Replacement Element: #21999-0202
Air Consumption Averages and Cycle Time:
| Item # | # of Towers | Orifice | CFM Consumption | Cycle Time | Tower Drying Time | # of Towers Drying | # of Towers Regen. |
| 21999-1020 | 4 | .030" | 4.4 | 2 min | 120 sec | 2 | 2 |
| 21999-1020-MM | 4 | .030" | 4.4 | 2 min | 120 sec | 2 | 2 |
