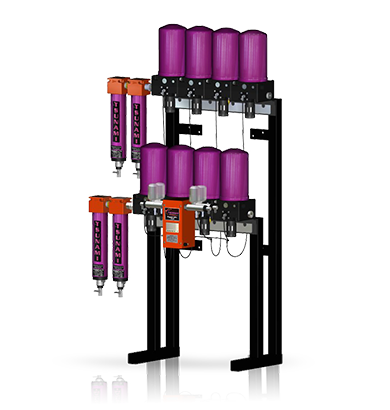

TSUNAMI 200 CFM (50Hp) Tsunami Regenerative Drying System - 24v PLC

TSUNAMI ULTRA SERIES

160-400 CFM RAIL MOUNTED COMPRESSED AIR DRYERS

REGENERATIVE DESICCANT

Tsunami Rail Mounted Regenerative Dryers are built to withstand the largest surges of contamination. Similar to other Tsunami drying systems, these dual-inlet units are built as complete packages. Choose from 160 - 400 CFM units or build your own.

Features:

• 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
• Molecular Sieve Desiccant
• Programmable Logic Controller
• Automatic Pneumatic Drains
• Purge Exhaust Mufflers
• Auxiliary port allows for filtered but not dried air downstream
• Heater pads available for cold temp applications
• Optional: C1D2 Compatible for hazardous locations

Benefits:

Dryer Performance:

• Low relative humidity - down to .01% RH
• Dew points down to -80F
• Easy, low-cost maintenance - under $100/year average

Filter Performance:

1st Stage Water Separator:

• Removes liquid water
• Filters particulate down to 10 micron

2nd Stage Oil Coalescing Filter:

• Removes bulk oils and aerosols
• Filters particulate down to .01 micron

Min/Max Air Inlet Temperature: 150F

Min/Max Operating Pressure: 175

Power Requirement: 120V

Fitted for 40, 50, 75, or 100 Hp Compressors

Water Separator Replacement Element: #21999-0228

Oil Coalescing Filter Replacement Element: #21999-0202-Z-SP

Air Consumption Averages and Cycle Time
