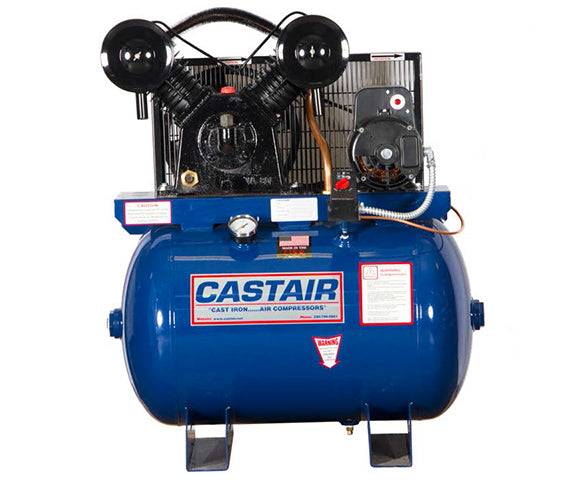

Castair 5HP Commercial / Garage Compressor 2 Stage, 21.7 CFM@ 100 PSI, 230 Volt, Pump RPM 715, 80Gal Horiz Tank C518HC1

All garage & commercial series pumps feature:

• Slow R.P.M. oil lubed CAST IRON belt driven pumps for quiet operation & long life.
• Automotive type filters/silencers with paper element provide clean intake air & quiet operation.
• Easy to read sight glass to insure proper oil level at a glance.

All garage & commercial series units feature:

• Powder coated ASME-tanks.
• Four feet on all stationary models.
• Rigid metal belt guards.
• Copper discharge & unloader tube for strength & increased heat dissipation.
• G212P50 has a mounted regulator with gauge & quick coupler.
• Single stage factory set to shut off at 125 PSI.
• Two stage factory set to shut off at 175 PSI.

All commercial series pumps feature:

• Precision steel connecting rods with automotive type rod insert bearings at crankshaft & needle bearings at wrist pin for long service life & reliability.
• Disc & spring valves for easy service, higher efficiency and reliability.
• Pistons have 4-rings for higher efficiency & less oil carry-over.

All single stage pumps feature:

• Smooth running v-twins for 360 deg. cooling around both cylinders (G3516VS75 is an inline twin).
• Main bearings are automotive type ball bearings for superior crankshaft support.
• Bleeder pressure switch for load-less starts.

All two stage pumps feature:

• Tapered roller bearings at both ends of crankshaft for superior support & less friction.
• Mechanical centrifugal unloader���for loadless start-up every time.

1 PHASE ��� MOTOR 3450 R.P.M. WITH FULL 15% SERVICE FACTOR & OVERLOAD PROTECTION.

No magnetic starter required.
