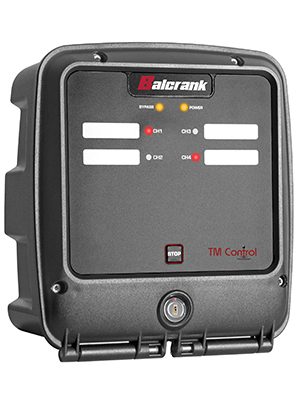

Balcrank TM Control 3110-033

TM Control

The TM Control is a standalone tank controller with 4 channels, each capable of managing up to 4 different tanks or fluids. It can control solenoid valves, relays, alarms, or strobe lights, offering high or low-level control to prevent overflow and pump dry run situations. It is ideal for standalone applications without the need for auxiliary software or systems.

Main Features

• Controls up to four channels, each assigned to a different tank or multiple channels assigned to a single tank
• Each channel manages solenoid valves, relays, external alarms, etc.
• Standalone unit, no connection to auxiliary software or systems required
• Compatible with tank alert strobe light and alarm (3120-029)
• One button for setup, resetting alarms, and system testing
• Key switch used for bypass mode control, setup access, and rebooting the system
• Status LEDs: Yellow indicates bypass mode, white indicates system status (on)
• Input LED for each channel: Red blinking LED indicates level warning
• Outputs can be configured as "normally open" or "normally closed"

Technical Data

Function

Standalone tank controller with four channels for controlling tanks or fluids.

Requirements & Limitations

• Supports up to 4 tanks or 4 fluids

Power

• Input: 110-230 V AC
• Required Voltage: 110/60 Hz, 240/50 Hz V AC
