SKU: SKU: 3320-028

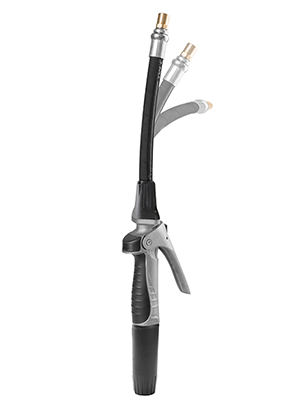

Balcrank Non-Metered Control Handle Flex with 1/4 Turn for Oil 3320-028
Balcrank Non-Metered Control Handle Flex with 1/4 Turn for Oil 3320-028
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
Non-Metered Control Handle
Features
- Fully ported, ball bearing, inlet swivel included
- Easy access fluid inlet screen included at swivel
- Included swivel hose-end cover, protects vehicle or machine surfaces from scratches
- Easy access for service of the rotary piston mechanism
- Trigger lock button prevents accidental control valve opening and allows the control valve to be locked in open position for large volumes dispense
- Cam & piston valve design optimized for superb control and minimal flow resistance
- Ergonomically designed grip handle for optimum comfort
Technical Data
- Flow Rate: 0.26-10.5 gal/min (1-40 l/min)
- Maximum Pressure: 1,450 psi (100 bar)
- Swivel Inlet: 1/2" NPT(F) Swivel
-
Dispense Nozzle OD:
- Auto = 0.605"
- Manual 1/4 turn for OIL = 0.705"
- Manual 1/4 turn for ATF = 0.315" (Verify ID of ATF fill port for compatibility)
- Operating Temperature: 14°F to 140°F (-10°C to 60°C)
- Weight: 3.30 lb (1.5 kg)
- Compatible Fluids: Oil, transmission fluid, hydraulic fluid, and anti-freeze
- Wetted Materials: Aluminum, stainless steel, zinc alloy, Buna-N™, zinc plated steel, and brass
- Service Bulletin: SB 3095
