Balcrank Nex-U-® U-vision Hand-held Keypad and Display Module 3110-113

Nex·U·® U·vision & U·vision Power+

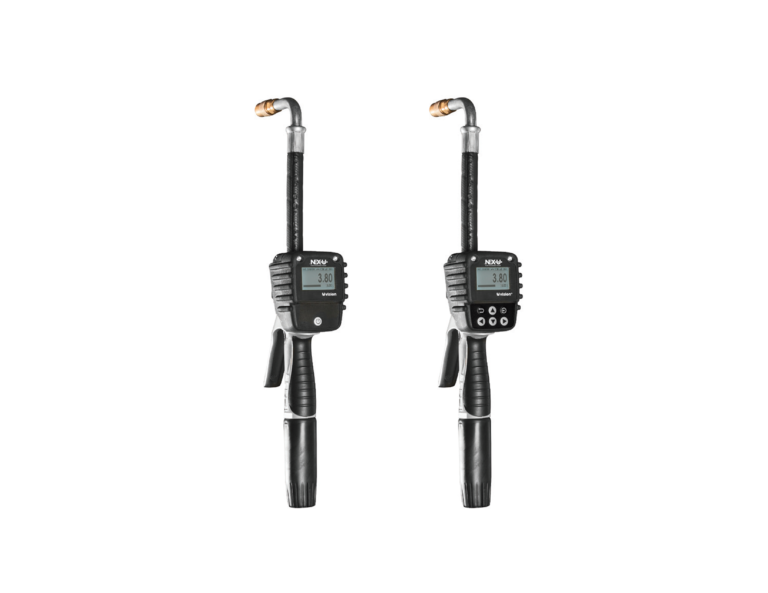

U·vision+ adapts to any Balcrank oil control handle and transforms the handle into a hand-held display and keypad for access to the Nex·U·® system.

Key Features

• Modular Design: Fits standard non-metered control handles.
• Data Display: U·vision displays reel, battery, and delivery data; U·vision+ can dispense and interact with the system.
• User Interaction: U·vision+ allows data input and system interaction, including PIN access, job order selection, volume entry, and fluid type confirmation.
• Control Handle: Control handle not included.

U·vision

U·vision is a hand-held display module designed to fit a Balcrank oil control handle. It includes a backlit display connected via Bluetooth® with a U·valve, U·meter+, or U·count module, and it displays the following parameters:

• Hose reel (fluid outlet number and fluid dispensed type).
• Battery life and Bluetooth® signal strength.
• Volume delivered and operation progress.
• Solenoid valve open or closed status.

U·vision+

U·vision+ includes a six-button keypad and can replace the U·dat keypad for data entry in the system. It allows the following operations:

• User access through PIN entry.
• Scroll through existing open job orders to select the corresponding one or enter the job order number (digits only).
• Enter the volume of fluid to be dispensed.
• Confirm fluid type and transaction.

Technical Data

Function

Hand-held display module designed to fit a Balcrank oil control handle and interact with the Nex·U·® system for fluid dispensing and operation monitoring.

Requirements & Limitations

• Non-metered control handle

Service Bulletin

U·vision: SB 3803

U·vision+: SB 3809
