SKU: SKU: 3110-115

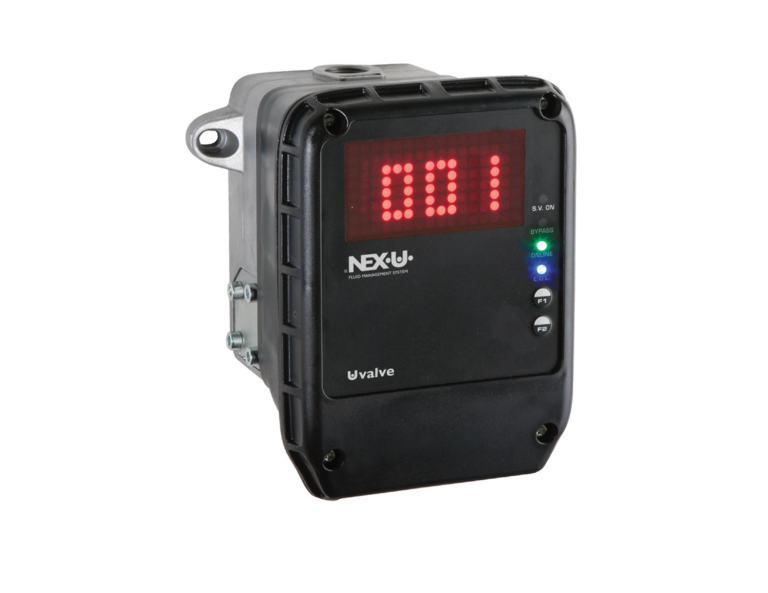

Balcrank Nex-U-® U-valve Meter Solenoid Valve and Electronic Module 3110-115
Balcrank Nex-U-® U-valve Meter Solenoid Valve and Electronic Module 3110-115
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
Nex·U·® U·valve
U·valve is a compact unit combining a high accuracy pulse meter, a solenoid valve, and a large cleanable fluid screen filter with an electronic module. This module is required to control the meter and valve operation and to communicate with other system components.
Key Features
- All-in-One Design: Combines pulse meter, solenoid valve, and fluid filter into a single unit, reducing installation time and eliminating leak risks associated with separate components.
- LED Display: Large, high-visibility LED display shows the U·valve number assigned in the system and indicates its operation status.
- Diagnostic Indicators: Four LED lights show U·valve operation for easy diagnostics, with two buttons for system configuration.
- Communication: U·valve supports CAN BUS cable communication to transmit data and electric power to open the solenoid valve. It also includes Bluetooth® for connecting to a U·vision or U·vision+ fluid handle with display.
- U·valve+ Additional Feature: Includes Wi-Fi® communications for data transmission to other system components.
Technical Data
| Component | Details |
|---|---|
| Components | Meter, solenoid valve, electronic module with Bluetooth® communication |
| Power Supply | 24 V DC supplied by U·dat or U·power module |
| Wetted Parts | Aluminium, NBR, stainless steel, acetal |
| Application | Lubricants, antifreeze solutions (stainless steel pulse meter and valve recommended for fluid additives) |
| Connection Threads | 1/2" NPT(F) |
| Flow Range | 1-32 qt/min (1-30 l/min) |
| Pulses Per Quart | 310 ppq (328 ppl) |
| Accuracy | +/- 0.5% |
| Maximum Working Pressure | 1,450 psi (100 bar) |
| Solenoid Valve | 24 V DC |
| Communication | CAN BUS, Bluetooth® (U·valve+ also includes Wi-Fi®) |
Function
U·valve controls the on/off function, dispenses and monitors flow, and communicates data to the U·net system for seamless operation.
Requirements & Limitations
- Requires U·power or U·power+ power supply units.
Power
U·valve and U·valve+ require 24 V DC, supplied by a U·dat or U·power module.
