Membrane Dryer for Compact, Reliable Compressed Air Drying
A membrane dryer removes moisture and water vapor from compressed air at the point of use. These compact systems are well suited to workshops, pneumatic equipment, spray applications, maintenance areas, and low-flow industrial processes where space, simplicity, and dependable dry air output matter.

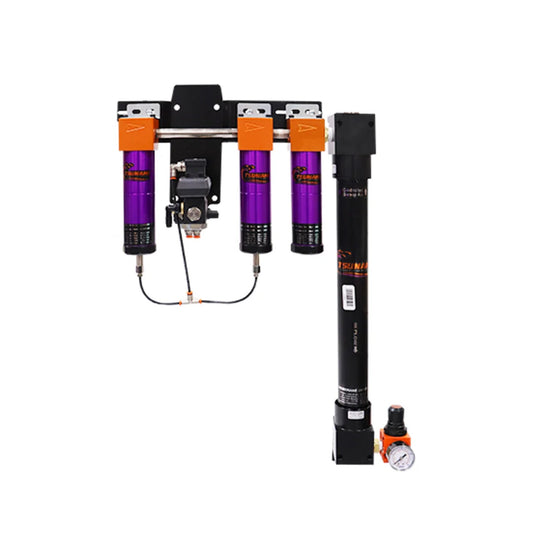

Choose from TSUNAMI membrane drying systems rated for 15 CFM or 20 CFM, with 1/4" NPT and 1/2" NPT connections. Replacement membrane cores are also available for compatible systems.
{product grid}
Membrane Dryer Types for Point-of-Use Air Treatment
Penry Air carries complete membrane drying systems and replacement components for existing equipment.
A complete compressed air membrane dryer combines the membrane core with prefiltration, moisture separation, drainage, mounting hardware, and pressure regulation. This gives buyers a ready-to-install solution for cleaner compressed air near the tool, workstation, or production process.
Replacement membrane cores are available for compatible TSUNAMI systems when the existing core no longer provides the required drying performance.
Current capacity options include:
- 15 CFM membrane drying system with 1/4" NPT connections
- 20 CFM membrane drying system with 1/2" NPT connections
- TSUNAMI replacement membrane core
- Two-stage prefiltration for liquid water, oil aerosols, and particulates
Need a different drying method or higher airflow? Compare all compressed air dryers, including refrigerated dryers, desiccant air dryers, and heatless air dryers.
Membrane Air Dryer Sizes and Compatibility
Start by matching the dryer capacity to the airflow used at the point of installation.
The 15 CFM model is a practical choice for smaller tools, spray stations, maintenance areas, and compact pneumatic systems. The 20 CFM model supports higher low-flow demand and uses a larger 1/2" NPT connection.
Before ordering, confirm:
- Maximum and normal airflow in CFM
- Air compressor output
- Existing pipe or hose connection size
- Operating pressure
- Inlet air temperature
- Available wall space
- Required outlet pressure
- Application demand and duty cycle
Do not select an air membrane dryer by compressor horsepower alone. The dryer must handle the actual airflow reaching the point of use.
How a Membrane Dryer Helps Protect Equipment
Moist compressed air can cause corrosion, sticking valves, surface defects, and inconsistent pneumatic performance. A properly matched point-of-use air dryer reduces water vapor before it reaches sensitive equipment.
The result is cleaner air delivery with less moisture entering tools, regulators, cylinders, spray equipment, and other downstream components.
Key benefits include:
- Supports moisture removal at the point of use
- Helps reduce condensation in local air lines
- Promotes cleaner, drier compressed air
- Helps protect pneumatic systems from corrosion
- Requires no electrical power for normal drying operation
- Fits compact workshop and industrial installations
- Reduces the need for large central drying equipment in selected low-flow applications
What to Look for in a Compressed Air Membrane Dryer
Choose capacity first. The dryer should support the required airflow without restricting the application or causing an unacceptable pressure drop.
Next, verify the NPT connection. A 1/4" NPT unit should match smaller air lines and low-flow equipment. A 1/2" NPT model is better suited to higher airflow and larger connections.
Check whether the system includes a water separator, oil coalescing filter, automatic drains, regulator, and wall-mounting brackets. Proper prefiltration helps protect the membrane core and supports consistent drying performance.
Also confirm replacement core availability before purchasing. Easy access to compatible service parts can reduce downtime and extend the useful life of the drying system.
Explore related air filters, and water separators to complete your air treatment setup.
Membrane Dryer Applications
A membrane dryer is best suited to compact and low-flow applications where buyers need dry air close to the equipment.
Common uses include:
- Pneumatic tools and control systems
- Automotive paint and spray applications
- Workshop air stations
- Industrial maintenance areas
- Instrument and process air
- Small production cells
- Point-of-use equipment protection
- Locations where electrical service is limited
- Continuous low-flow compressed air demand
For larger plant-wide airflow or applications that require a different pressure dew point, compare membrane systems with refrigerated or desiccant drying options.
How to Choose the Right Membrane Dryer
Match the rated CFM to the maximum airflow used by the application. Leave enough capacity for normal fluctuations, but avoid unnecessary oversizing.
Confirm whether your air line uses 1/4" NPT or 1/2" NPT connections. Ordering the wrong port size can add fittings, installation time, and unwanted pressure loss.
Review the condition of existing filters, drains, and piping before installation. A membrane dryer should receive properly filtered compressed air for reliable operation.
Common mistakes include selecting by price alone, ignoring outlet airflow, choosing the wrong thread size, and treating a replacement membrane core as a complete drying system.
Membrane Dryer Performance Without Electricity
TSUNAMI membrane drying systems use compressed air pressure to produce dry air output without a powered refrigeration circuit. This makes them a strong option for compact installations, remote work areas, and buyers who want fewer electrical requirements.
Point-of-Use Air Dryer With Integrated Prefiltration
Available systems combine moisture separation, oil coalescing filtration, automatic drainage, and membrane drying in one wall-mounted package. This simplifies purchasing and gives the membrane core cleaner inlet air.
Replacement Membrane Core for Easier System Service
A replacement membrane core allows maintenance teams to restore compatible equipment without replacing the full filter and mounting assembly. Confirm the model, airflow rating, and system compatibility before ordering.
Membrane Dryer FAQs
What is a membrane dryer used for?
A membrane dryer removes water vapor from compressed air near the point of use. It is commonly used with pneumatic tools, spray equipment, instrument air, and compact industrial systems.
How do I choose the right membrane dryer size?
Match the rated CFM to the maximum airflow required by the application. Also verify pressure, inlet temperature, connection size, installation space, and required outlet flow.
What is the difference between a membrane dryer and a compressed air dryer?
A membrane dryer is one type of compressed air dryer. It is generally selected for compact, low-flow, point-of-use applications. Refrigerated and desiccant dryers are often used for larger systems or different dew point requirements.
Is a membrane dryer a maintenance-free dryer?
It is better described as a low-maintenance dryer. The membrane has no powered refrigeration system, but filters, drains, regulators, and the replacement membrane core still require inspection and service.
When should I replace a membrane dryer core?
Replace the core when drying performance declines, air quality no longer meets the application requirement, or the manufacturer’s inspection indicates replacement is needed. Check prefilters first, since contamination can also affect performance.
Which connection should I choose, 1/4" NPT or 1/2" NPT?
Choose the connection that matches your air line and required flow. The 1/4" NPT option supports the 15 CFM system, while the 1/2" NPT option is used with the 20 CFM system.
Can I install a membrane air dryer near the tool?
Yes. Its compact wall-mounted design makes it well suited to point-of-use installation near pneumatic equipment, spray stations, and production work areas.
Find the right membrane dryer today. Explore the collection, compare CFM and NPT options, and order the TSUNAMI system or replacement core that fits your compressed air application.
