SKU: SKU: 21999-0357

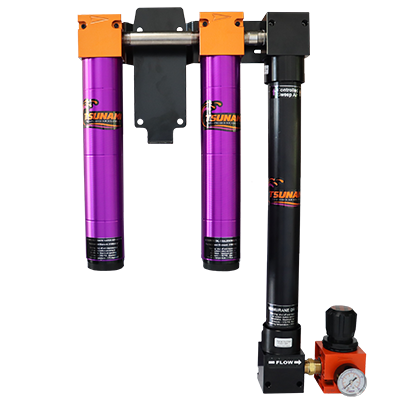

TSUNAMI Membrane Drying System - 20 CFM, 1/2" NPT
TSUNAMI Membrane Drying System - 20 CFM, 1/2" NPT
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
Technical Details
Max CFM: 20
Port Size: 1/2" NPT
Weight: 16.5 lbs
Dimensions (HWD): 23” x 20” x 4.5”
Max Pressure: 175 PSI
Max Temperature: 100°F
15 CFM and 20 CFM 2-Stage Pre-filtration options are available.
TSUNAMI Membrane Dryers
Tsunami Membrane Dryers provide an economical solution for supplying clean, dry air without the need for electricity. The molecular makeup of the hollow tubes allows water vapor to pass. The greater the pressure differential between the inlet nad outlet pressures, the drier the air downstream.
The 2-Stage Membrane Dryer includes a water separator, oil coalescing filter, and membrane dryer. Incoming air enters the 1st and 2nd stage filters where liquid water, oils and particulates are removed. Then, the air enters the Membrane Dryer where water vapor is removed from the air.
How it works:
1. The molecular makeup of the hollow tubes allows certain gases to pass through the membrane quicker than the desired gas.
2. As compressed air travels through the hollow tubes, water vapor passes through the membrane pores.
3. The water vapor collects within the housing until it is removed.
4. A fixed orifice at the bottom of the hollow tubes allows dry air to pass up the housing, around the hollow tubes, to sweep the water vapor out the sweep holes at the top of the housing.
Features:
- 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
- Membrane Dryer Core
- Automatic Drains
- Wall Mounting Brackets
- Outlet Regulator
- Heater pads available for cold temp applications
- Optional: C1D2 Compatible for hazardous locations
Benefits:
- Dryer Performance:
- Low relative humidity - down to .01% RH
- Dew points down to -80F
- Easy, low-cost maintenance - under $160/year average
- Filter Performance:
- 1st Stage Water Separator:
- Removes liquid water
- Filters particulate down to 10 micron
- 2nd Stage Oil Coalescing Filter:
- Removes bulk oils and aerosols
- Filters particulate down to .01 micron
SIZING & ORDERING INFORMATION
| MAX CFM | ITEM # | PORT SIZE (NPT) | DRAIN | MAX PSI | MAX F | WEIGHT (LBS) | DIMENSIONS (HWD) |
|---|---|---|---|---|---|---|---|
| 15 | 21999-0889 | " | Float | 175 | 100 | 9 | 22" x 12" x 3.5" |
| 20 | 21999-0357 | " | Float | 175 | 100 | 16.5 | 23" x 20" x 4.5" |
Filter Package for 15 CFM Unit #21999-0424
Filter Package for 20 CFM Unit #21999-0251
