SKU: UARS0.110600

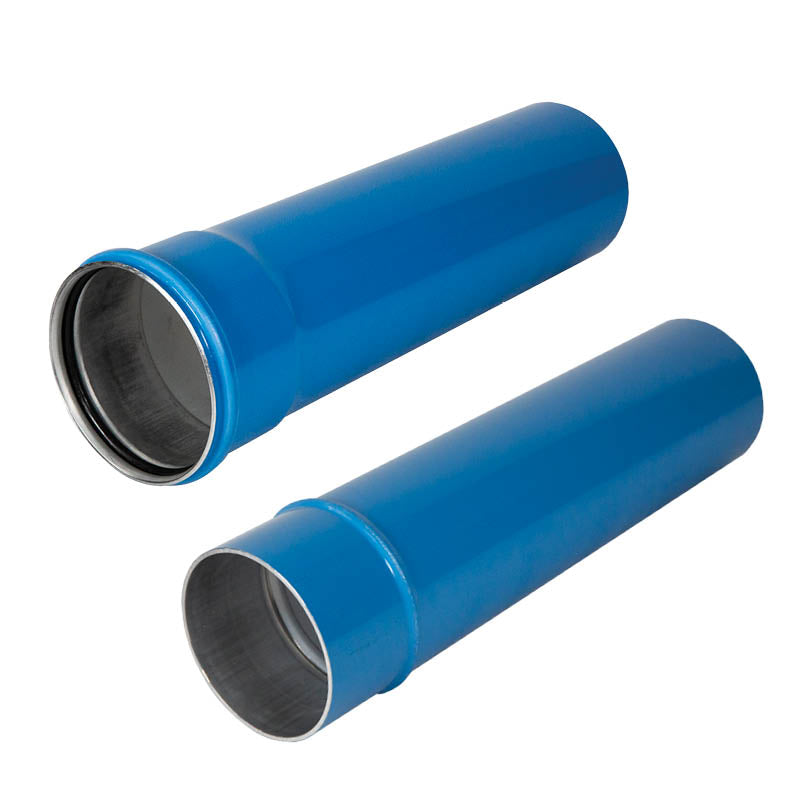

Unipipe EZ Compressed Air Piping - Blue - 232 PSI - Includes Hinged Coupling
Unipipe EZ Compressed Air Piping - Blue - 232 PSI - Includes Hinged Coupling
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
Unipipe EZ – Compressed Air Piping
The Unipipe EZ pipe system is a large-diameter, lightweight aluminum piping network designed for clean and efficient compressed air distribution in high-volume applications. It installs quickly with press-style fittings and features an integrated hinged coupling for faster, easier assembly. Engineered for long service life, Unipipe EZ is ideal for industrial and commercial environments.
Product Specifications
- Max Working Pressure: 232 PSI (16 bar)
- Plant Testing Pressure (1 hour at 20°C): 348 PSI (24 bar)
- Quality Testing Pressure (1 hour at 20°C): 928 PSI (64 bar)
- Continuous Working Temperature: from -4°F to 212°F (-20°C up to 100°C)
- Max Working Temperature: from -22°F up to 266°F (-30°C up to 130°C)
- Thread Standard: NPT National Pipe Thread complying to ANSI B1.20.1
- Aluminium Pipe Mechanical Resistance: According to EN-755-2/2008 standards
- Pipe Material: Aluminium Alloy EN AW 6060 - T5 according to EN 755-2/2008
- Aluminium Fittings Material: Aluminium Alloy EN Aw 6061 T6
- O-Ring & Lip Gasket Material: HNBR 65°/75° Shore A
- Clamp Ring Material: AISI 304 Stainless Steel
| Part No. | Size mm | Size Inches | Wall Thickness mm | Length m | Length Feet | Weight |
|---|---|---|---|---|---|---|
| UARS0.110600 | 110 | 4 ½ | 3.0 | 5.8 | 19 | 35.7 lbs. |
| UARS0.160600 | 160 | 6 | 4.3 | 5.8 | 19 | 75.4 lbs. |
| UARS0.200600 | 200 | 8 | 4 | 5.8 | 19 | 89.3 lbs. |
| UARS0.250600 | 250 | 10 | 5 | 5.8 | 19 | 141 lbs. |
