SKU: 21999-0755

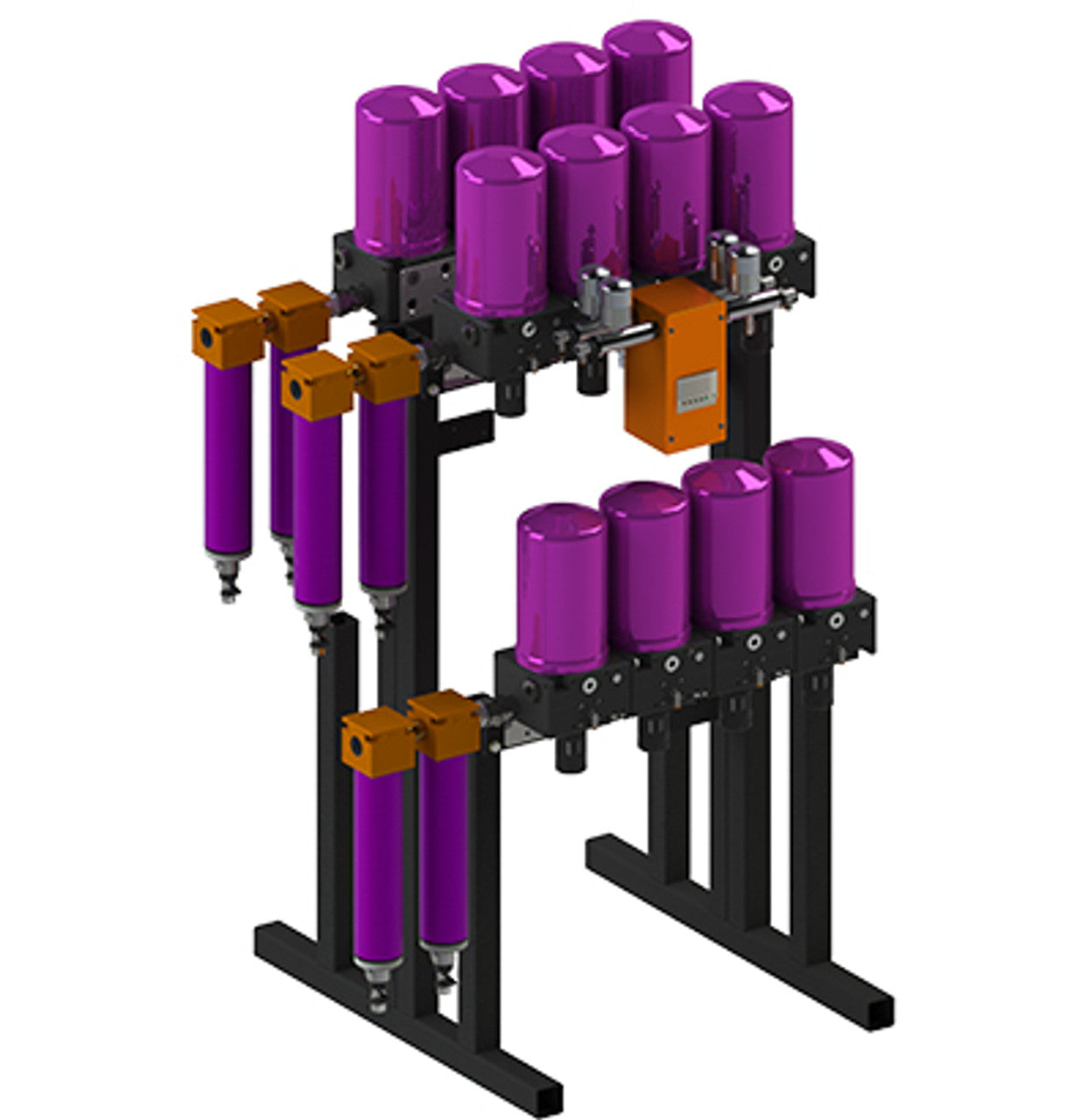

TSUNAMI Ultra Series Rail-Mounted Regenerative Dryer - 300 CFM (75HP)
TSUNAMI Ultra Series Rail-Mounted Regenerative Dryer - 300 CFM (75HP)
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
Technical Details
Model: 21999-0755
Max CFM: 300
Size: 75HP
Towers: 12
Drain Type: Pneumatic
Port Size: 1” NPT
Weight: 428 lbs
Dimensions (HWD): 66” x 36” x 42”
Max Air Inlet Temperature: 150F
Operating Pressure: 175PSI
Power Requirement: 120V
Ultra Series Rail-Mounted Regenerative Desiccant Dryers
Tsunami rail mounted regenerative dryers are built to withstand the largest surges of contamination. Similar to other Tsunami drying systems, these dual-inlet units are built as complete packages. Choose from 160 - 400 CFM units or build your own
Features:
- 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
- Molecular Sieve Desiccant
- Programmable Logic Controller
- Automatic Pneumatic Drains
- Purge Exhaust Mufflers
- Auxiliary port allows for filtered but not dried air downstream
- Heater pads available for cold temp applications
- Optional: C1D2 Compatible for hazardous locations
Benefits:
Dryer Performance:
- Low relative humidity - down to .01% RH
- Dew points down to -80F
- Easy, low-cost maintenance - under $100/year average
Filter Performance:
1st Stage Water Separator:
- Removes liquid water
- Filters particulate down to 10 micron
2nd Stage Oil Coalescing Filter:
- Removes bulk oils and aerosols
- Filters particulate down to .01 micron
Fitted for 40, 50, 75, or 100 HP Compressors
Water Separator Replacement Element: #21999-0228
Oil Coalescing Filter Replacement Element: #21999-0202-Z-SP
Ultra Rail-Mounted Series Air Consumption Averages and Cycle Time
| Item # | # of Towers | Orifice | CFM Consumption | Cycle Time | Tower Drying Time | # of Towers Drying | # of Towers Regen. |
|---|---|---|---|---|---|---|---|
| 21999-0740 | 8 | .045" | 8 | 45 sec | 135 sec | 6 | 2 |
| 21999-0750 | 8 | .060" | 16 | 45 sec | 135 sec | 6 | 2 |
| 21999-0755 | 12 | .060" | 24 | 45 sec | 135 sec | 9 | 3 |
| 21999-0760 | 16 | .060" | 32 | 45 sec | 135 sec | 12 | 4 |
