SKU: 21999-0082

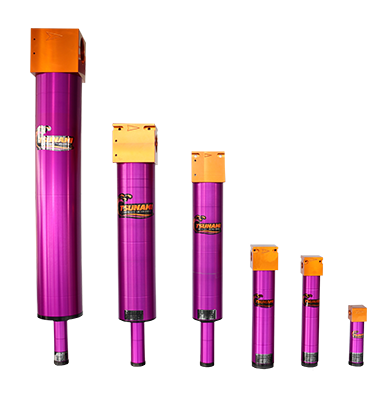

TSUNAMI 1" NPT Float Drain
TSUNAMI 1" NPT Float Drain
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
TSUNAMI OIL COALESCING FILTERS
HIGH QUALITY AIR FILTRATION
Tsunami oil coalescing filters deliver high grade compressed air and protect critical equipment from oil aerosols and particulates. Tsunami oil coalescing filters use a non-wicking drain layer secured to the outside support core to separate oil and water from the air flow and drain the liquid to the filter sump.
Features:
- Manufactured from borosilicate glass micro fibers bonded together with a resin binder
- Chemical-resistant cores and layers support coalescing media
- Non-Wicking layer collects and drains oil into drain sump of the filter housing, preventing entrainment
- Available with float, electronic, or pneumatic drain options
- Available for systems with a flow rating from 20 to 800 CFM
- Made in America
Benefits:
- Point-of-use protection for air tools and pneumatic equipment
- Larger elements provide more surface area to capture oils and particulates while minimizing pressure drop
- Removes oil, oil mist, and particulates down to .01 micron at 99.9% efficiency
| MAX CFM | ITEM # | PORT SIZE (NPT) | DRAIN | MAX PSI | MAX °F | WEIGHT (LBS) | DIMENSIONS (HWD) |
|---|---|---|---|---|---|---|---|
| 20 | 21999-0390-Z-FD | - | FLOAT | 250 | 175 | 1" | 8" x 2" x 2" |
| 20 | 21999-0390-Z-ED | - | ELECTRONIC | 250 | 175 | 2 | 12" x 2" x 2" |
| 20 | 21999-0390-Z-MM | - | PNEUMATIC | 250 | 175 | 2 | 10" x 2" x 2" |
| 50 | 21999-0131-Z-FD | - | FLOAT | 250 | 175 | 3" | 14" x 2" x 2" |
| 50 | 21999-0131-Z-ED | - | ELECTRONIC | 250 | 175 | 4" | 17" x 5" x 4" |
| 50 | 21999-0131-Z-MM | - | PNEUMATIC | 250 | 175 | 4 | 17" x 2" x 2" |
| 120 | 21999-1034-Z-FD | - | FLOAT | 250 | 175 | 9 | 16" x 3" x 3" |
| 120 | 21999-1034-Z-ED | - | ELECTRONIC | 250 | 175 | 9" | 18" x 6" x 4" |
| 120 | 21999-1034-Z-MM | - | PNEUMATIC | 250 | 175 | 9 | 18" x 3" x 3" |
| 120 | 21999-0082-Z-FD | 1 | FLOAT | 250 | 175 | 9 | 16" x 3" x 3" |
| 120 | 21999-0082-Z-ED | 1 | ELECTRONIC | 250 | 175 | 9" | 18" x 6" x 4" |
| 120 | 21999-Z-MM | 1 | PNEUMATIC | 250 | 175 | 5" | 18" x 3" x 3" |
| 225 | 21999-1150-Z-FD | 1" | FLOAT | 200 | 175 | 11 | 22" x 4.5" x 4.5" |
| 225 | 21999-1150-Z-ED | 1" | ELECTRONIC | 200 | 175 | 12 | 25" x 4.5" x 4.5" |
| 225 | 21999-1150-Z-MM | 1" | PNEUMATIC | 200 | 175 | 12 | 26" x 4.5" x 8.5" |
| 300 | 21999-1096-Z-FD | 1" | FLOAT | 200 | 175 | 11" | 31" x 4" x 6" |
| 300 | 21999-1096-Z-ED | 1" | ELECTRONIC | 200 | 175 | 12 | 32" x 4" x 10" |
| 300 | 21999-1096-Z-MM | 1" | PNEUMATIC | 200 | 175 | 12 | 32" x 4" x 10" |
| 450 | 21999-1160-Z-FD | 2 | FLOAT | 200 | 175 | 16 | 26" x 5.5" x 5.5" |
| 450 | 21999-1160-Z-ED | 2 | ELECTRONIC | 200 | 175 | 17 | 28" x 5.5" x 5.5" |
| 450 | 21999-1160-Z-MM | 2 | PNEUMATIC | 200 | 175 | 18 | 29" x 5.5" x 9.5" |
| 600 | 21999-1120-Z-FD | 2 | FLOAT | 200 | 175 | 17 | 31" x 5" x 5" |
| 600 | 21999-1120-Z-ED | 2 | ELECTRONIC | 200 | 175 | 18 | 34" x 5" x 5" |
| 600 | 21999-1120-Z-MM | 2 | PNEUMATIC | 200 | 175 | 19 | 35" x 5" x 5" |
| 800 | 21999-0960-Z-FD | 3 | FLOAT | 200 | 175 | 45 | 43" x 6" x 6" |
| 800 | 21999-0960-Z-ED | 3 | ELECTRONIC | 200 | 175 | 46 | 43" x 6" x 6" |
| 800 | 21999-0960-Z-MM | 3 | PNEUMATIC | 200 | 175 | 46 | 43" x 6" x 6" |
