SKU: PDE 100T

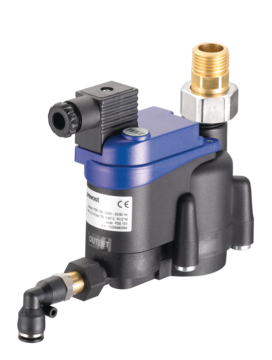

Prevost Electronic Drain
Prevost Electronic Drain
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
Electronic Drain
The Electronic Drain is designed to remove accumulated condensate from compatible compressed air systems through an electrically operated drainage mechanism. It provides a convenient solution for condensate management in industrial compressed air installations, helping reduce the need for manual drainage.
The PDE 100T electronic drain features a 1/2-inch NPT male threaded connection, operates on a 110V power supply, and has an IP65 protection rating. With a condensate removal capacity of 1.35 gallons per hour, an operating pressure range of 3 to 232 PSI, and a temperature range of 36°F to 140°F, it is designed for compatible compressed air applications.
| Part Number | Male Thread (in) | Voltage (V) | Degree of Protection | Outlet Diameter (mm) | Removal Capacity (gal/h) | Operating Pressure (PSI) | Temperature Min/Max (°F) |
|---|---|---|---|---|---|---|---|
| PDE 100T | 1/2" MNPT | 110 | IP65 | 8 | 1.35 | 3–232 | 36 / 140 |
