SKU: TEMP 202115COLS

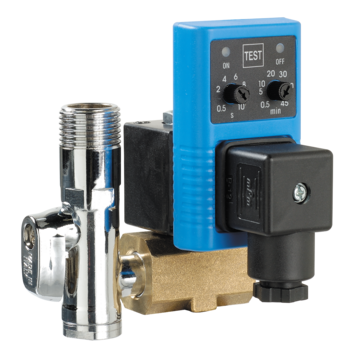

Prevost Automatic Drain Valve Kit
Prevost Automatic Drain Valve Kit
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
Automatic Drain Valve Kit
The Automatic Drain Valve Kit is designed to provide controlled condensate removal from compatible compressed air systems. The kit combines a programmable timer, condensate evacuation solenoid, and drain trap with a quarter-turn shut-off valve to support automatic condensate drainage and system maintenance.
The TEMP 202115COLS operates on a 110V, 50/60 Hz electrical supply and features 3/8-inch FNPT connections as specified in the supplied product data. Its programmable timer allows the drain opening duration to be adjusted from 0.5 to 10 seconds and the drainage cycle interval from 0.5 to 45 minutes. The kit has a 5/32-inch internal passage and an operating temperature range of 35°F to 131°F.
Kit Includes
- Programmable Timer: Controls the drain opening duration and interval between drainage cycles.
- Condensate Evacuation Solenoid: Electrically operates the condensate discharge valve.
- Drain Trap: Provides a condensate drainage component within the assembly.
- Quarter-Turn Shut-Off Valve: Allows manual isolation of the drain assembly for compatible maintenance procedures.
| Part Number | Thread Size (in) | Supply Voltage | Internal Passage (in) | Drain Opening (sec) | Drain Cycle (min) | Temperature Min/Max (°F) |
|---|---|---|---|---|---|---|
| TEMP 202115COLS | 3/8" FNPT | 110V - 50/60 Hz | 5/32" | 0.5–10 | 0.5–45 | 35 / 131 |
