SKU: KTM SM201

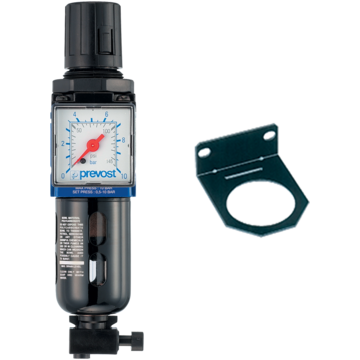

Prevost ALTO Filter-Regulator with Wall Bracket - KTM SM
Prevost ALTO Filter-Regulator with Wall Bracket - KTM SM
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
ALTO Filter-Regulator with Wall Bracket - KTM SM
The ALTO Filter-Regulator with Wall Bracket - KTM SM is a compressed air preparation unit that combines filtration and pressure regulation to help protect downstream pneumatic equipment and maintain consistent air pressure. Supplied with a wall-mounting bracket, it provides a compact solution for compressed air filtration and pressure control. The unit features 25 µm filtration, a maximum operating pressure of 174 PSI, and an operating temperature range of 41°F to 122°F. Available in 1/4", 3/8", and 1/2" FNPT connection sizes, with flow rates ranging from 19 to 106 CFM at 100 PSI and a 14 PSI pressure drop.
| Part Numbers | Female Thread (in) | Flow Rate (CFM at 100 PSI, ΔP = 14 PSI) | Max. Operating Pressure | Filtration | Temperature Min/Max |
|---|---|---|---|---|---|
| KTM SM201 | 1/4" FNPT | 19 CFM | 174 PSI | 25 µm | 41 / 122 °F |
| KTM SM202 | 3/8" FNPT | 64 CFM | 174 PSI | 25 µm | 41 / 122 °F |
| KTM SM203 | 1/2" FNPT | 106 CFM | 174 PSI | 25 µm | 41 / 122 °F |
