SKU: TM 204
Prevost ALTO Filter-Regulator - TM
Prevost ALTO Filter-Regulator - TM
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges

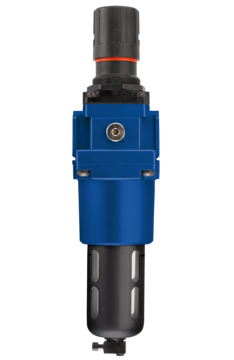

ALTO Filter-Regulator - TM
The ALTO Filter-Regulator - TM is a compressed air preparation unit that combines filtration and pressure regulation to help protect downstream pneumatic equipment and maintain consistent air pressure. Designed to remove solid contaminants from compressed air while providing adjustable outlet pressure, the unit features 25 µm filtration, a G 1/4 pressure gauge connection, and a maximum output pressure of 145 PSI. It supports an inlet operating pressure of up to 174 PSI, an adjustable outlet pressure range of 7–145 PSI, and an operating temperature range of 41°F to 122°F. Available in 3/4" and 1" FNPT connection sizes, with flow rates ranging from 150 to 194 CFM at 87 PSI and a 14 PSI pressure drop.
| Part Numbers | Female Thread (in) | Flow Rate (CFM at 87 PSI, ΔP = 14 PSI) | Max. Output Pressure | Inlet Operating Pressure | Outlet Operating Pressure | Filtration | Pressure Gauge Thread Size | Temperature Min/Max |
|---|---|---|---|---|---|---|---|---|
| TM 204 | 3/4" FNPT | 150 CFM | 145 PSI | 174 PSI | 7–145 PSI | 25 µm | G 1/4 | 41 / 122 °F |
| TM 205 | 1" FNPT | 194 CFM | 145 PSI | 174 PSI | 7–145 PSI | 25 µm | G 1/4 | 41 / 122 °F |
