SKU: TB SME201

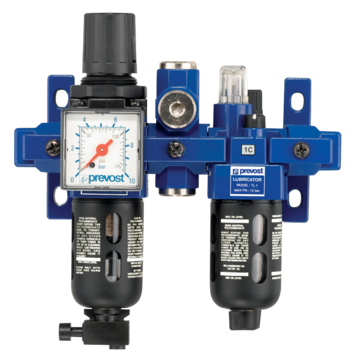

Prevost ALTO Filter-Regulator-Lubricator with Wall Bracket Diverter Block and Pipe Adapters - 2 Units - TB SME
Prevost ALTO Filter-Regulator-Lubricator with Wall Bracket Diverter Block and Pipe Adapters - 2 Units - TB SME
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
ALTO Filter-Regulator-Lubricator with Wall Bracket Diverter Block and Pipe Adapters - 2 Units - TB SME
The ALTO Filter-Regulator-Lubricator (FRL) with Wall Bracket, Diverter Block, and Pipe Adapters - TB SME is a two-unit compressed air preparation system that combines filtration, pressure regulation, and lubrication to help protect downstream pneumatic equipment and maintain reliable system performance. Equipped with a diverter block featuring four outlets for non-lubricated air, it allows the distribution of filtered, regulated air to applications that do not require lubrication. Supplied with a wall-mounting bracket and pipe adapters, the unit features 25 µm filtration, a pressure gauge with a 0–145 PSI range, a maximum output pressure of 174 PSI, and an operating temperature range of 41°F to 122°F. Available in 1/4", 3/8", and 1/2" FNPT connection sizes, with flow rates ranging from 18 to 99 CFM at 87 PSI and a 14 PSI pressure drop.
| Part Numbers | Female Thread (in) | Flow Rate (CFM at 87 PSI, ΔP = 14 PSI) | Max. Output Pressure | Filtration | Pressure Gauge Range | Non-Lubricated Air Outlets | Temperature Min/Max |
|---|---|---|---|---|---|---|---|
| TB SME201 | 1/4" FNPT | 18 CFM | 174 PSI | 25 µm | 0–145 PSI | 4 | 41 / 122 °F |
| TB SME202 | 3/8" FNPT | 44 CFM | 174 PSI | 25 µm | 0–145 PSI | 4 | 41 / 122 °F |
| TB SME203 | 1/2" FNPT | 99 CFM | 174 PSI | 25 µm | 0–145 PSI | 4 | 41 / 122 °F |
