Prevost ALTO Filter-Regulator-Lubricator with Wall Bracket - 2 Units - KTB SM
Prevost ALTO Filter-Regulator-Lubricator with Wall Bracket - 2 Units - KTB SM
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges

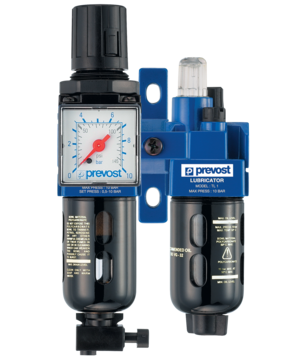

ALTO Filter-Regulator-Lubricator with Wall Bracket - 2 Units - KTB SM
The ALTO Filter-Regulator-Lubricator (FRL) with Wall Bracket - KTB SM is a two-unit compressed air preparation system that combines filtration, pressure regulation, and lubrication to help protect downstream pneumatic equipment. Supplied with a wall-mounting bracket, it provides a compact solution for compressed air treatment and pressure control. The unit features 25 µm filtration, a maximum operating pressure of 174 PSI, and an operating temperature range of 41°F to 122°F. Available in 1/4", 3/8", and 1/2" FNPT connection sizes, with flow rates ranging from 18 to 99 CFM at 100 PSI and a 14 PSI pressure drop.
| Part Numbers | Female Thread (in) | Flow Rate (CFM at 100 PSI, ΔP = 14 PSI) | Max. Operating Pressure | Filtration | Temperature Min/Max |
|---|---|---|---|---|---|
| KTB SM201 | 1/4" FNPT | 18 CFM | 174 PSI | 25 µm | 41 / 122 °F |
| KTB SM202 | 3/8" FNPT | 44 CFM | 174 PSI | 25 µm | 41 / 122 °F |
| KTB SM203 | 1/2" FNPT | 99 CFM | 174 PSI | 25 µm | 41 / 122 °F |
