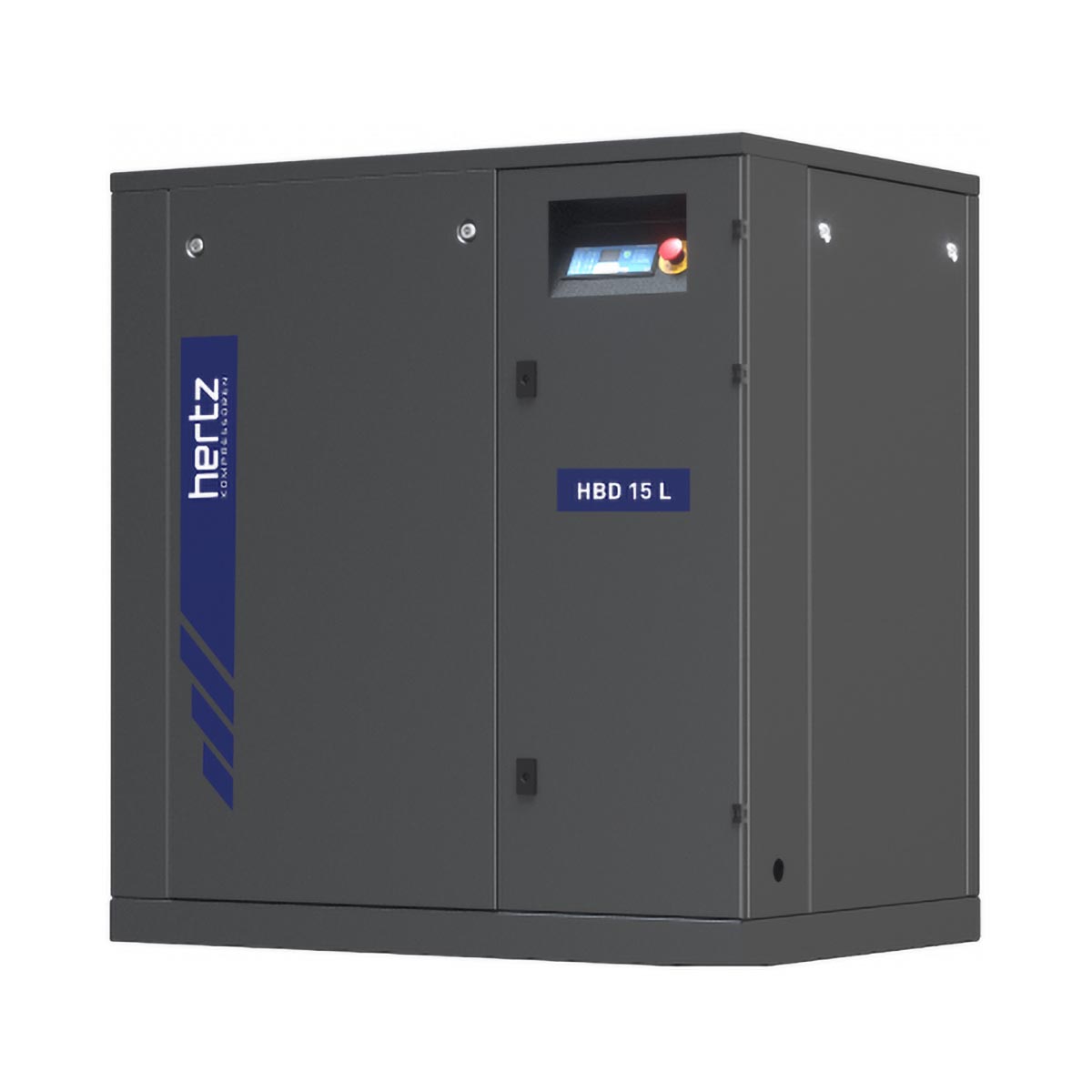

Hertz HBD Series Belt Driven Fixed Speed Rotary Screw Air Compressor - HBD 15 L

Hertz HBD Series Belt Driven Fixed Speed Rotary Screw Air Compressor - HBD 15 L

Ships in 3 to 4 weeks
Online Chat
Ask an expert

Model

Tank Configuration

Dryer

Pressure

Capacity

Voltage

Automatic Tank Drain

Food Grade Oil

Cold Start - Oil Heater

Configured Part No. HBD-15L-B-208-100-000

In stock
$13,020.00
$15,500.00 $13,020.00
Order by Phone
Order by Phone

Local Service Available on All Brands

100% Secure Payment 100% Secure Payment
Buy Now, Pay Later Buy Now, Pay Later
Free Returns & Exchanges Free Returns & Exchanges
View full details
Description
Documents
Reviews

Hertz HBD Series Belt Driven Fixed Speed Rotary Screw Air Compressor

The Hertz HBD Series features belt-driven, oil-injected rotary screw air compressors engineered for reliable, energy-efficient compressed air production in industrial environments. Designed with premium components and a compact footprint, HBD compressors deliver consistent airflow while reducing operating and maintenance costs. The series is available in multiple power ratings to meet the demands of workshops, manufacturing facilities, automotive service centers, and general industrial applications.

Advantages

  • Economic, service-friendly design minimizes downtime and reduces maintenance costs.
  • Models with tanks and integrated dryers are compact and take up little space, leaving room for other machinery.

General Features

  • High quality screw block and motor.
  • Electronic control.
  • Optional high-pressure air tank made from high-pressure vessel steel.
  • Easy installation and quick implementation thanks to its compact design.
  • All air and oil tanks comply with ASME standards.

Main Motor and Drive System

  • IE3 efficiency-class electric motor.
  • Star/delta motor starter.
  • Soft start option.
  • Belt-pulley drive system.
  • Easy-to-use belt tensioner and pulley bushing for simplified servicing.

Screw Block

  • Durable screw block provides high air delivery and is specifically selected for each model capacity.
  • New rotor profiles reduce air losses and lower torque requirements.
  • Next-generation bearing design improves load-bearing capability.

Air and Oil Separator

  • Spin-on separator.
  • Easy to replace, assemble and disassemble.

Cooling System

  • Quiet and efficient axial fan directly coupled to the main motor (HBD 4–15).
  • Temperature-controlled auxiliary cooling fan (HBD 15 L–37).

Controller

  • Master/Slave synchronization for up to two compressors without an external controller.
  • Internal ModBus communication.
  • User-friendly display interface.
  • Stores the last 20 alarm records.
  • Weekly programmable scheduler with three operating periods per day.
  • Maintenance reminders and service history.

Technical Specifications

Model Pressure Capacity* Motor
HP/kW		 Connection Dimensions (in.) Weight (lbs)
PSI Bar CFM m³/min Length Width Height
HBD 4 100 6.9 21 0.6 5.5 / 4 1/2" NPT 34 22 34 397
125 8.6 19 0.5
150 10.3 17 0.5
175 12.1 15 0.4
HBD 5 100 6.9 29 0.8 7.5 / 5.5 1/2" NPT 34 22 34 441
125 8.6 28 0.8
150 10.3 25 0.7
175 12.1 23 0.7
HBD 7 100 6.9 44 1.2 10 / 7.5 3/4" NPT 40 22 33 496
125 8.6 39 1.1
150 10.3 34 1.0
175 12.1 28 0.8
HBD 11 100 6.9 68 1.9 15 / 11 3/4" NPT 48 26 36 661
125 8.6 63 1.8
150 10.3 55 1.6
175 12.1 51 1.4
HBD 15 100 6.9 81 2.3 20 / 15 3/4" NPT 48 26 36 750
125 8.6 75 2.1
150 10.3 70 2.0
175 12.1 66 1.9
HBD 15 L 100 6.9 97 2.7 20 / 15 1" NPT 50 33 58 1058
125 8.6 87 2.5
150 10.3 77 2.2
175 12.1 71 2.0
HBD 18 100 6.9 119 3.4 25 / 18.5 1" NPT 50 33 58 1102
125 8.6 106 3.0
150 10.3 94 2.7
175 12.1 88 2.5
HBD 22 100 6.9 140 3.9 30 / 22 1" NPT 50 33 58 1168
125 8.6 128 3.6
150 10.3 113 3.2
175 12.1 107 3.0
HBD 30 100 6.9 195 5.5 40 / 30 1 1/4" NPT 63 41 69 1742
125 8.6 171 4.8
150 10.3 156 4.4
175 12.1 141 4.0
HBD 37 100 6.9 243 6.9 50 / 37 1 1/4" NPT 63 41 69 1830
125 8.6 220 6.2
150 10.3 201 5.7
175 12.1 180 5.1

Notes:

  • Unit performance is measured under reference conditions: 1 bar (14.5 psig) absolute inlet air pressure, 0% relative humidity, 68°F (20°C) inlet air temperature, 160°F (71°C) thermostatic valve setting, and using Smartoil.
  • HERTZ KOMPRESSOREN reserves the right to modify product specifications and designs without prior notice.
  • * Free Air Delivery (FAD) values are measured in accordance with ISO 1217:2009, Annex C.
