SKU: EDS-2BV

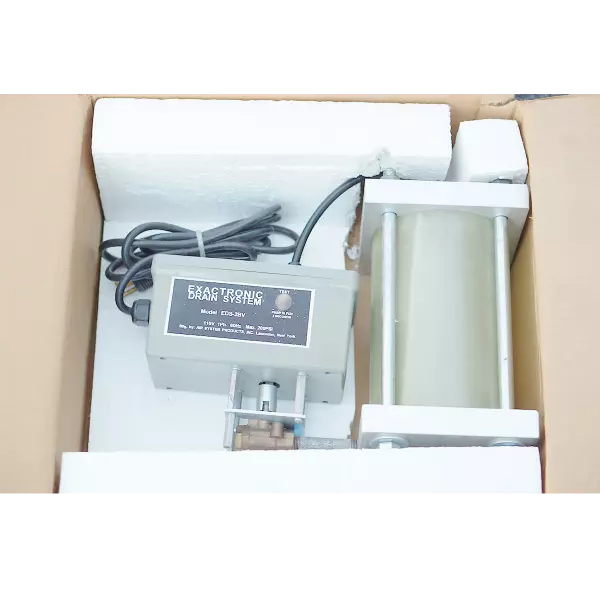

Air System Products Exactronic Drain System EDS-2BV
Air System Products Exactronic Drain System EDS-2BV
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
Exactronic Drain System
Electric Operated Condensate Drain System for Air Compressors
Combines the best of float type drains and timer operated ball valve drains to protect compressed air systems. Translucent reservoir for visual assurance of operation.
Features
- Large 50 oz. capacity
- No wasted air
- Non clogging
- Translucent reservoir
- Isolated trigger mechanism
- Full port ball valve
Benefits
- Ideal for most compressor applications
- Saves energy
- No strainers to clean
- Easy-to-see condensate level “Quick check”
- Ensures both a positive opening and closing to prevent air loss
- Handles scale and rust without clogging
Specifications
| Inlet | 1/2″ NPT |
| Outlet | 1/4″ NPT |
| Pressure | 0 to 200 PSI |
| Operating Temperature | 35° to 140° F |
| Weight | 20 lbs. |
| Discharge | 0.4 Gal. per cycle, 100 PSI |
| Voltage | 120V / 60Hz / 1Ph |
| Electrical Rating | NEMA 4X |
Materials
| Reservoir | Aluminum and Composite |
| Valve | Bronze with Stainless Steel Ball and Stem |
| Float | Stainless Steel |
| Seat | Stainless Steel |
| Seal | Viton |
