All garage & commercial series pumps feature:
- Slow R.P.M. oil lubed CAST IRON belt driven pumps for quiet operation & long life.
- Automotive type filters/silencers with paper element provide clean intake air & quiet operation.
- Easy to read sight glass to insure proper oil level at a glance.
All garage & commercial series units feature:
- Powder coated ASME-tanks.
- Four feet on all stationary models.
- Rigid metal belt guards.
- Copper discharge & unloader tube for strength & increased heat dissipation.
- G212P50 has a mounted regulator with gauge & quick coupler.
- Single stage factory set to shut off at 125 PSI.
- Two stage factory set to shut off at 175 PSI.
All commercial series pumps feature:
- Precision steel connecting rods with automotive type rod insert bearings at crankshaft & needle bearings at wrist pin for long service life & reliability.
- Disc & spring valves for easy service, higher efficiency and reliability.
- Pistons have 4-rings for higher efficiency & less oil carry-over.
All single stage pumps feature:
- Smooth running v-twins for 360 deg. cooling around both cylinders (G3516VS75 is an inline twin).
- Main bearings are automotive type ball bearings for superior crankshaft support.
- Bleeder pressure switch for load-less starts.
All two stage pumps feature:
- Tapered roller bearings at both ends of crankshaft for superior support & less friction.
- Mechanical centrifugal unloader���for loadless start-up every time.
1 PHASE ��� MOTOR 3450 R.P.M. WITH FULL 15% SERVICE FACTOR & OVERLOAD PROTECTION.
No magnetic starter required.
| HP | Stage | Tank Gal/Type | Pump R.P.M. | C.F.M. @ 0-PSI | C.F.M. @ 100 PSI | LxWxH Dimension | Voltage Amps | WT. Shipped | Unit Model |
|---|---|---|---|---|---|---|---|---|---|
| 5 | SINGLE | 30 horiz. | 1088 | 23.7 | 18.3 | 33x18x38 | 230/22 | 295 | C513HA8 |

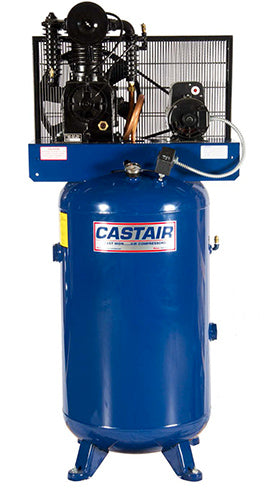

| 5 | SINGLE | 60 vert. | 1088 | 23.7 | 18.3 | 34x20x68 | 230/22 | 335 | C516VA8 |
| 5 | SINGLE | 80 vert. | 1088 | 23.7 | 18.3 | 32x24x66 | 230/22 | 435 | C518VA8 |
| 5 | SINGLE | 80 horiz. | 1088 | 23.7 | 18.3 | 64x20x41 | 230/22 | 435 | C518HA8 |
| 5 | TWO | 80 vert. | 715 | 21.7 | 18.1 | 32x24x74 | 230/22 | 560 | C518VC1 |
| 5 | TWO | 80 horiz. | 715 | 21.7 | 18.1 | 64x20x48 | 230/22 | 560 | C518HC1 |
