SKU:

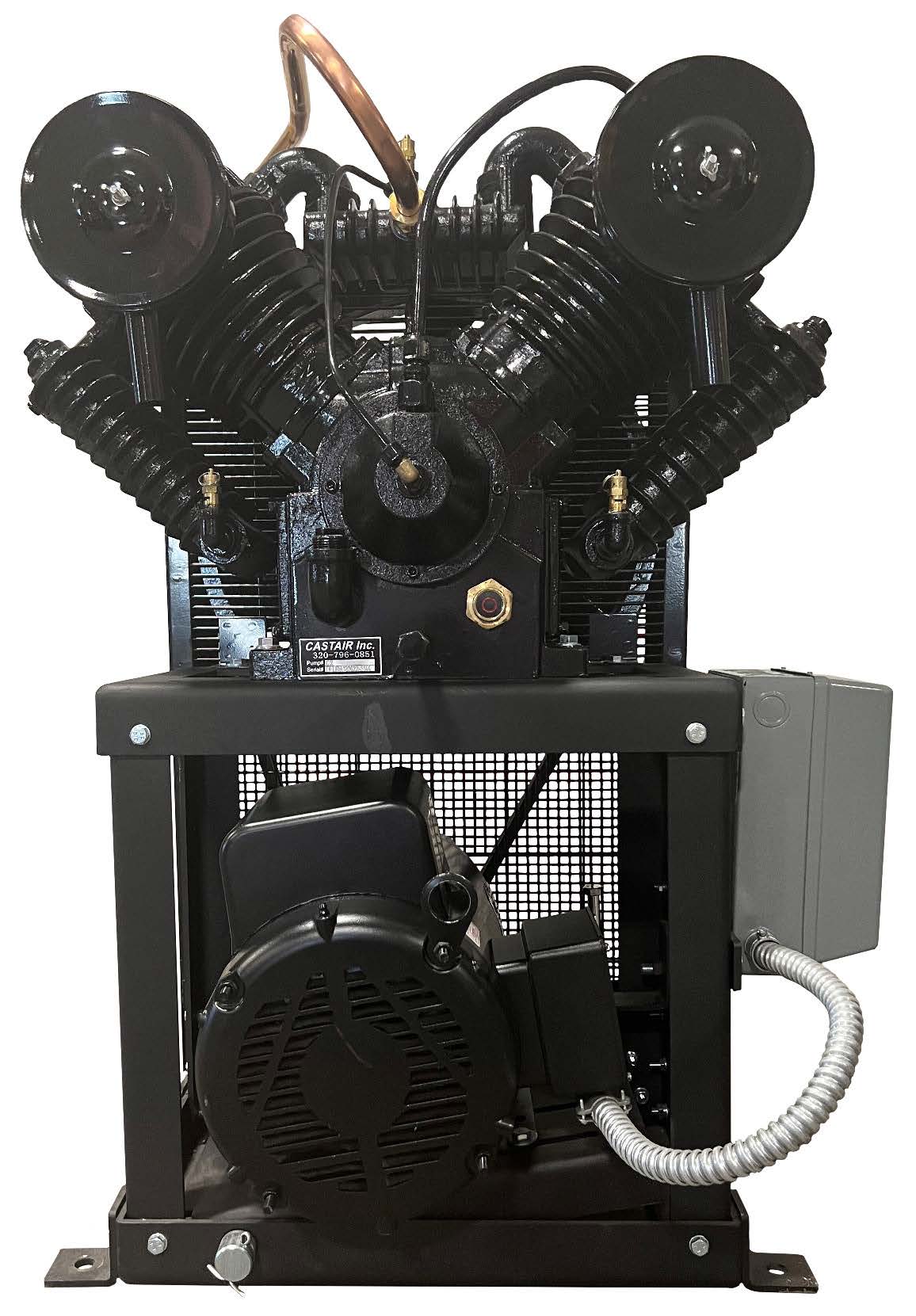

I51CUC1-S
Additional Features and Installation Items
- Cheaper than replacing an entire unit if the tank is still in working order
- Compatible with Castair or Brand X; easily mounts on any existing tank with just a few quick bolts/holes and connections
- Cube packages include mounted and wired magnetic motor starter. Standard pump outlet with 3/4��� NPT female threads for discharge connection
- Easy to mount in service vans/trucks
- Minimal floor space required
- Easy to service pump
- Rigid steel frame construction for durability
- Self-tensioning electric motor base for secure installation
Installation Items You May Need
- Vibration pads
- Remote tanks
- Check valves
- JIC to NPT straights and elbows for pump discharge
- Rigid copper or stainless-steel flex lines available for pump discharge tube to tank
- Pressure switch (required for operation)
Compressor Specifications
| HP | Phase | Pump R.P.M. | CFM @ 0-PSI | CFM @ 175 PSI | LxWxH Dimension | Wt. Lbs. | Unit Model |
|---|---|---|---|---|---|---|---|
| 5 | 1 | 767 | 22.0 | 17.5 | 27x22x41 | 405 | I51CUC1-S |
| 5 | 1 | 420 | 22.0 | 17.5 | 31x24x41 | 505 | I51CUC2-S |
| 7.5 | 1 | 895 | 32.4 | 24.8 | 27x24x41 | 440 | I71CUC1-S |
| 7.5 | 1 | 585 | 35.0 | 28.1 | 31x24x41 | 540 | I71CUC2-S |
| 10 | 1 | 758 | 45.0 | 35.0 | 31x24x41 | 570 | I101CUC2-S |
| 5 | 3 | 767 | 22.0 | 17.5 | 27x22x41 | 405 | I53CUC1-S |
| 5 | 3 | 420 | 22.0 | 17.5 | 31x24x41 | 505 | I53CUC2-S |
| 7.5 | 3 | 895 | 32.4 | 24.8 | 27x22x41 | 440 | I73CUC1-S |
| 7.5 | 3 | 585 | 35.0 | 28.1 | 31x24x41 | 540 | I73CUC2-S |
| 10 | 3 | 758 | 45.0 | 35.0 | 31x24x41 | 570 | I103CUC2-S |
