SKU: SKU: 3110-121
Balcrank Nex-U-® U-meter+ 1/2” NPT(F) DEF, WW. AF 3110-121
Balcrank Nex-U-® U-meter+ 1/2” NPT(F) DEF, WW. AF 3110-121
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges

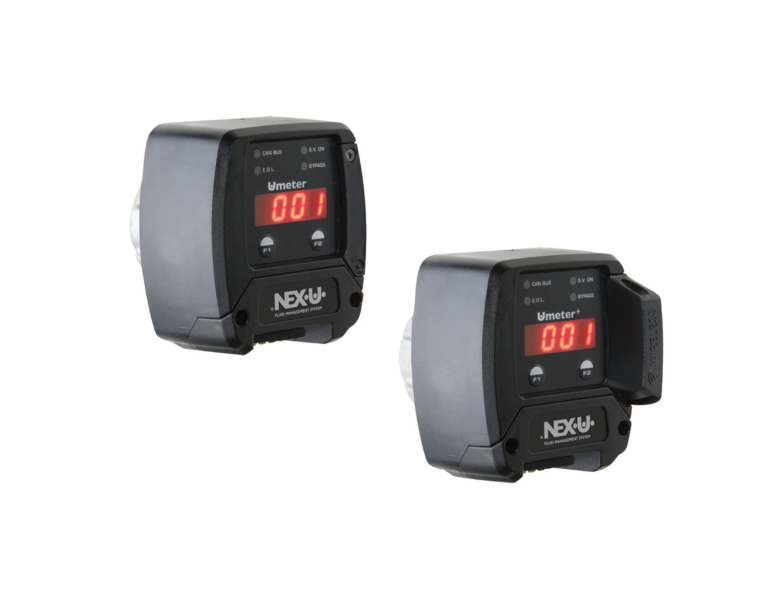

Nex·U·® U·meter & U·meter+
The U·meter and U·meter+ are high-accuracy, compact pulse meters that include the electronic module required to control the meter and valve operation. These meters communicate with other system components through CAN BUS for seamless integration into the Nex·U·® system.
Key Features
- LED Display: The U·meter features an LED display that shows the assigned U·meter number and operation status, with four LED lights for diagnostic purposes and two buttons for system configuration.
- Fast Connection: Equipped with fast connection in/out CAN BUS terminals for efficient communication.
- Material and Size Options: Available in different materials and sizes to match various applications.
- U·meter+ Bluetooth® Connectivity: U·meter+ includes Bluetooth® for connecting to a U·vision or U·vision+ module for enhanced display and interaction.
Technical Data
| Component | Details |
|---|---|
| Display | LED display with U·meter number and operational status |
| LED Indicators | Four LED lights for operation diagnostics |
| Buttons | Two buttons for system configuration |
| Connection | Fast in/out CAN BUS terminals |
| Bluetooth® (U·meter+) | Allows connection to U·vision or U·vision+ for enhanced display |
| Material & Size | Available in different materials and sizes to match application requirements |
Function
U·meter is an in-line meter that measures fluid flow and communicates this data to the Nex·U·® system for efficient operation and monitoring.
Requirements & Limitations
- Requires U·power or U·power+ power supply units.
- Order solenoid separately.
Power
U·meter and U·meter+ require 24 V DC, supplied by a U·dat or U·power module.
| Model | Part No. | Wetted Materials | Applications | Connection Threads | Flow Range | Pulses per Quart | Accuracy | Max Working PSI | Communications | Service Bulletin |
|---|---|---|---|---|---|---|---|---|---|---|
| U·METER+ (Bluetooth) | 3110-117 | Aluminium, NBR, stainless steel, acetal | Lubricants | 1/2” NTP(F) | 1 - 32 qt/min (1 - 30 l/min) | 310 ppq (328 ppl) | +/- 0.5 % | 1,450 psi (100 bar) | CAN BUS | SB 3801 |
| U·METER+ (Bluetooth) | 3110-123 | Aluminium, NBR, stainless steel, acetal | Lubricants, diesel | 3/4” NTP(F) | 8.4 - 84.4 qt/min (8 - 80 l/min) | 103 ppq (109 ppl) | +/- 0.5 % | 1,450 psi (100 bar) | CAN BUS | SB 3810 |
| U·METER+ (Bluetooth) | 3110-121 | PVC, Vectra®, stainless steel, Viton® | DEF, WW, AF | 1/2” NTP(F) | 1 - 52.8 qt/min (1 - 50 l/min) | 303 ppq (320 ppl) | +/- 0.5 % | 1,450 psi (100 bar) | CAN BUS | SB 3801 |
| U·METER+ (Bluetooth) | 3110-119 | Stainless steel, Vectra®, Viton® | DEF, WW, AF | 1/2” NTP(F) | 1 - 52.8 qt/min (1 - 50 l/min) | 303 ppq (320 ppl) | +/- 0.5 % | 1,450 psi (100 bar) | CAN BUS | SB 3808 |
| U·METER | 3110-139 | Aluminium, NBR, stainless steel, acetal | Lubricants | 1/2” NTP(F) | 1 - 32 qt/min (1 - 30 l/min) | 310 ppq (328 ppl) | +/- 0.5 % | 1,450 psi (100 bar) | CAN BUS | SB 3801 |
| U·METER | 3110-122 | Aluminium, NBR, stainless steel, acetal | Lubricants, diesel | 3/4” NTP(F) | 8.4 - 84.4 qt/min (8 - 80 l/min) | 103 ppq (109 ppl) | +/- 0.5 % | 1,450 psi (100 bar) | CAN BUS | SB 3810 |
| U·METER | 3110-120 | PVC, Vectra®, stainless steel, Viton® | DEF, WW, AF | 1/2” NTP(F) | 1 - 52.8 qt/min (1 - 50 l/min) | 303 ppq (320 ppl) | +/- 0.5 % | 1,450 psi (100 bar) | CAN BUS | SB 3801 |
| U·METER | 3110-118 | Stainless steel, Vectra®, Viton® | DEF, WW, AF | 1/2” NTP(F) | 1 - 52.8 qt/min (1 - 50 l/min) | 303 ppq (320 ppl) | +/- 0.5 % | 1,450 psi (100 bar) | CAN BUS | SB 3808 |
