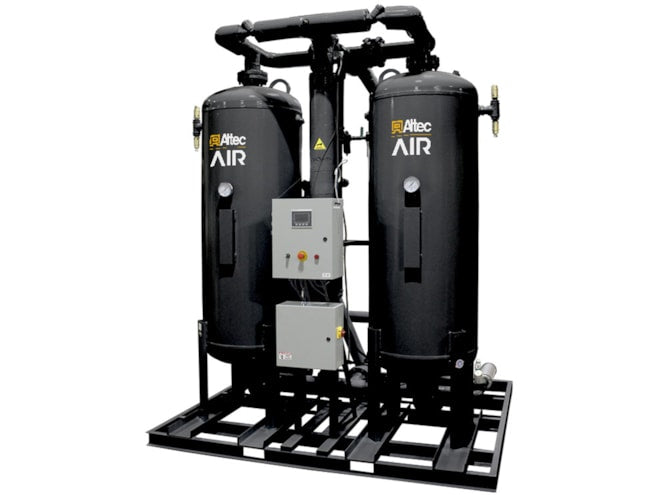

Altec AIR HRE Series Dual Tower Heat Regenerative Desiccant Air Dryer - 1250 SCFM

HRE Series Heat Regenerative Desiccant Air Dryer

The HRE Series from Altec AIR utilizes a low watt density heater to warm a regulated amount of dried process air, which then flows counter-current through the desiccant bed. This heated purge air removes moisture from the desiccant and is vented to the atmosphere—ensuring continuous, reliable drying performance.

Designed with ASME/CRN approved pressure vessels and a feature-rich Pro-Logic Controller, the HRE Series provides a rugged, dependable solution for industrial applications requiring high-quality air and reliable -40°F dew point performance.

Key Features:

• Heated purge system: uses low watt density heater and dry process air to regenerate desiccant

• Standard outlet dew point: -40°F (-40°C), ISO 8573.1 Class 2

• Regulated purge flow: optimized for efficiency regardless of operating pressure

• Factory-installed filters: with differential pressure gauges and pre-filter timer drain

• ASME / CRN approved pressure vessels

• ETL listed Pro-Logic controller: housed in a NEMA 4X enclosure

• Power requirements (model specific): 120 VAC, 1 Phase, 60 Hz; 230 VAC, 1 Phase, 60 Hz; 460 VAC, 3 Phase, 60 Hz

• Maximum pressure: 150 PSIG

• Maximum operating temperature: 120°F (49°C)

• Tower pressure gauges & dew point indicators

• Welded frame base: forklift accessible for easy relocation

• OSHA approved mufflers

• Desiccant fill & drain ports

• ASME safety relief valves

• Optional features: alternate voltages, EcoTronic dew point demand control, bypass packages (3-way, 6-way, 9-way), environment temperature kits, high pressure models (200 PSIG), upgraded controller, stainless steel control tubing and fittings, bolt-down construction
