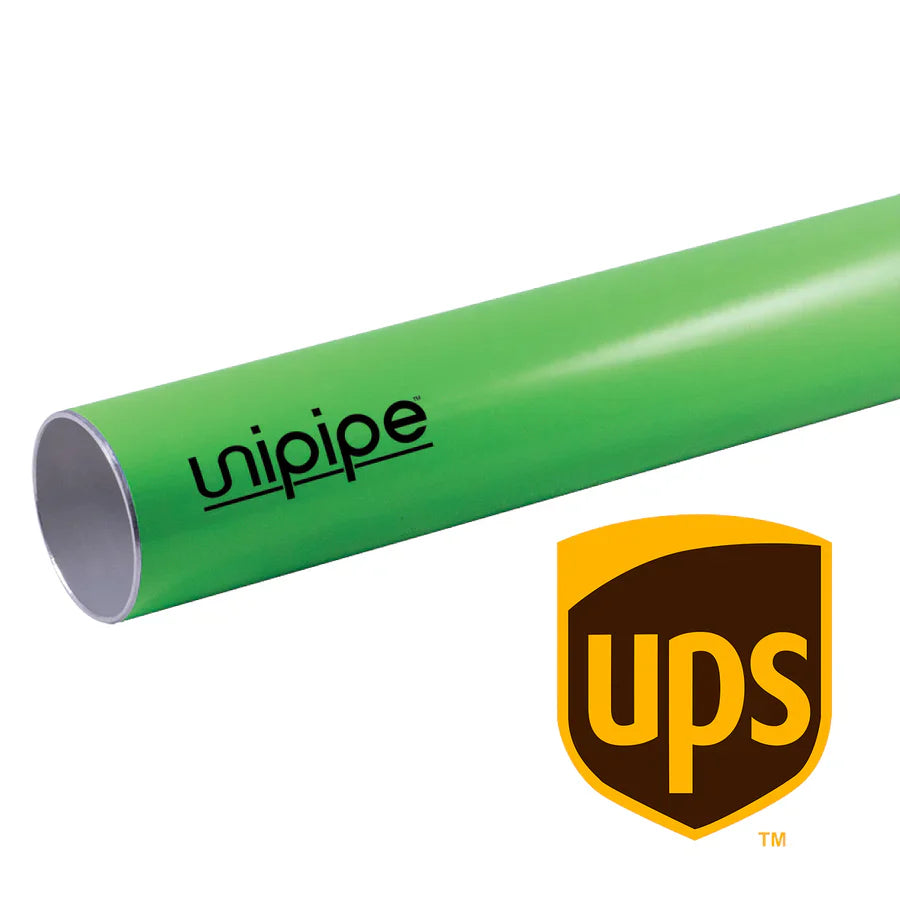

Unipipe NITRO Nitrogen Gas Piping
The Unipipe NITRO pipe system is a lightweight, corrosion-resistant aluminum piping network specifically engineered for the safe and efficient distribution of nitrogen gas. It installs quickly with press-style fittings and is designed for long service life in industrial and commercial environments handling nitrogen.
Product Specifications
- Max Working Pressure: 232 PSI (16 bar)
- Plant Testing Pressure (1 hour at 20°C): 348 PSI (24 bar)
- Quality Testing Pressure (1 hour at 20°C): 928 PSI (64 bar)
- Continuous Working Temperature: from -4°F to 212°F (-20°C up to 100°C)
- Max Working Temperature: from -22°F up to 266°F (-30°C up to 130°C)
- Thread Standard: NPT National Pipe Thread complying to ANSI B1.20.1
- Aluminium Pipe Mechanical Resistance: According to EN-755-2/2008 standards
- Pipe Material: Aluminium Alloy EN AW 6060 - T5 according to EN 755-2/2008
- Aluminium Fittings Material: Aluminium Alloy EN Aw 6061 T6
- O-Ring & Lip Gasket Material: HNBR 65°/75° Shore A
- Clamp Ring Material: AISI 304 Stainless Steel
| Part No. | Size mm | Size Inches | Wall Thickness mm | Length m | Length Feet | Weight |
|---|---|---|---|---|---|---|
| UWTTO.020600 | 20 | ¾ | 1.0 | 5.8 | 19 | 2.1 lbs. |
| UWTTO.025600 | 25 | 1 | 1.1 | 5.8 | 19 | 2.9 lbs. |
| UWTTO.040600 | 40 | 1½ | 1.3 | 5.8 | 19 | 5.7 lbs. |
| UWTTO.050600 | 50 | 2 | 1.4 | 5.8 | 19 | 7.7 lbs. |
| UWTTO.063600 | 63 | 2½ | 1.8 | 5.8 | 19 | 12.4 lbs. |
Unipipe NITRO Nitrogen Gas Piping – UPS Shipping
| Part No. | Size mm | Size inches | Wall Thickness mm | Length m | Length Feet | Weight |
|---|---|---|---|---|---|---|
| CUWTT0.020250 | 20 | ¾ | 1.0 | 2.5 | 8 | 0.9 lbs |
| CUWTT0.025250 | 25 | 1 | 1.1 | 2.5 | 8 | 1.2 lbs |
| CUWTT0.040250 | 40 | 1½ | 1.3 | 2.5 | 8 | 2.4 lbs |
| CUWTT0.050250 | 50 | 2 | 1.4 | 2.5 | 8 | 3.2 lbs |
