SKU: SKU: UCTT0.020400
Unipipe HP High-Pressure Piping - Dark Blue - 1015 PSI
Unipipe HP High-Pressure Piping - Dark Blue - 1015 PSI
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges

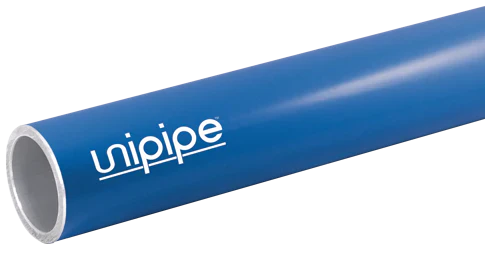

Unipipe HP High-Pressure Piping
The Unipipe HP system is a heavy-duty aluminum piping network engineered for high-pressure applications such as nitrogen, hydraulic oil, and high-pressure compressed air distribution. Designed with a lightweight yet strong aluminum alloy, it installs quickly with press-style fittings and delivers long-term performance in demanding industrial environments. With corrosion resistance, mechanical strength, and easy assembly, Unipipe HP is the reliable solution for high-pressure piping needs.
Product Specifications
- Max Working Pressure: 1015 PSI (70 bar)
- Continuous Working Temperature: from -4°F to 305°F (-20°C up to 151°C)
- Max Working Temperature: from -22°F up to 266°F (-30°C up to 130°C)
- Thread Standard: NPT National Pipe Thread complying to ANSI B1.20.1
- Aluminium Pipe Mechanical Resistance: According to EN-755-2/2008 standards
- Pipe Material: Aluminium Alloy EN AW 6060 - T5 according to EN 755-2/2008
- Aluminium Fittings Material: Aluminium Alloy EN Aw 6082 T6
- O-Ring & Lip Gasket Material: HNBR 65°/75° Shore A
- Clamp Ring Material: AISI 304 Stainless Steel
| Part No. | Size mm | Size Inches | Wall Thickness mm | PSI | Length m | Length Feet | Weight |
|---|---|---|---|---|---|---|---|
| UCTT0.020400 | 20 | ¾ | 2.0 | 1015 | 4 | 13 | 2.1 lbs |
| UCTT0.025400 | 25 | 1 | 2.5 | 1015 | 4 | 13 | 2.9 lbs |
| UCTT0.040400 | 40 | 1½ | 4.0 | 1015 | 4 | 13 | 5.7 lbs |
| UCTT0.050400 | 50 | 2 | 5.0 | 1015 | 4 | 13 | 7.7 lbs |
| UCTT0.063400 | 63 | 2½ | 6.0 | 1015 | 4 | 13 | 12.4 lbs |

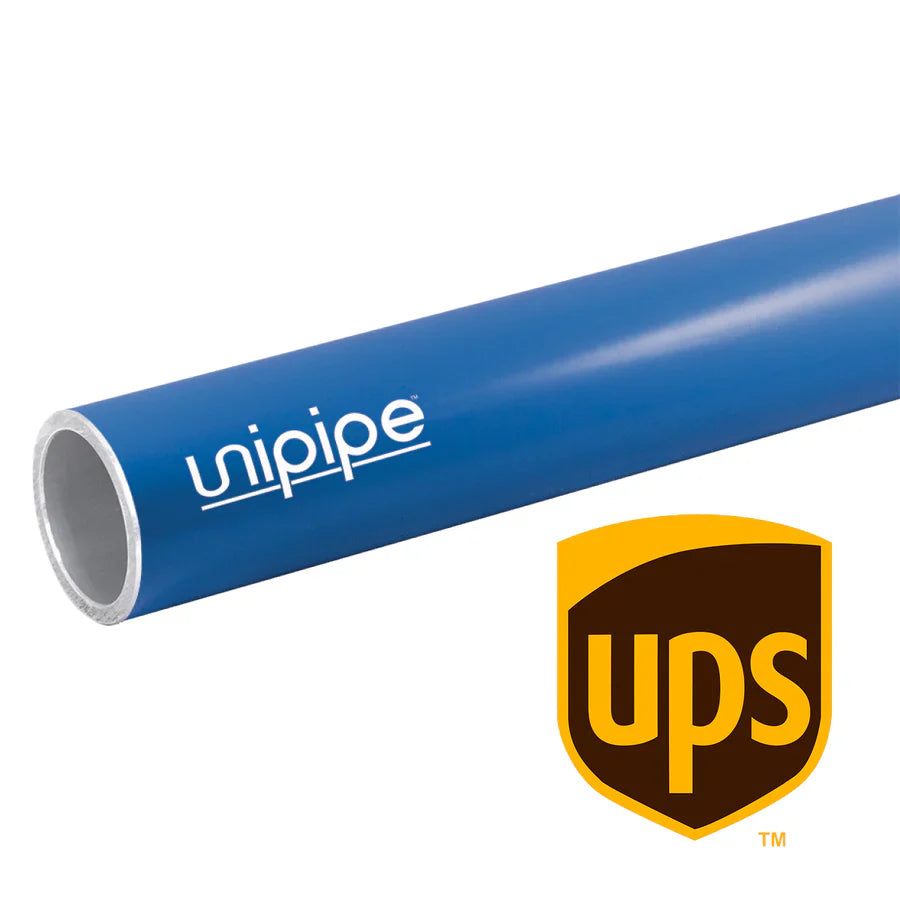

Unipipe HP High-Pressure Piping – UPS Shipping
| Part No. | Size mm | Size Inches | Wall Thickness mm | PSI | Length m | Length Feet | Weight |
|---|---|---|---|---|---|---|---|
| CUCTT0.020200 | 20 | ¾ | 2.0 | 1015 | 2 | 6.5 | 1.1 lbs |
| CUCTT0.025200 | 25 | 1 | 2.5 | 1015 | 2 | 6.5 | 1.5 lbs |
| CUCTT0.040200 | 40 | 1½ | 4.0 | 1015 | 2 | 6.5 | 2.9 lbs |
| CUCTT0.050200 | 50 | 2 | 5.0 | 1015 | 2 | 6.5 | 3.9 lbs |
| CUCTT0.063200 | 63 | 2½ | 6.0 | 1015 | 2 | 6.5 | 6.2 lbs |
