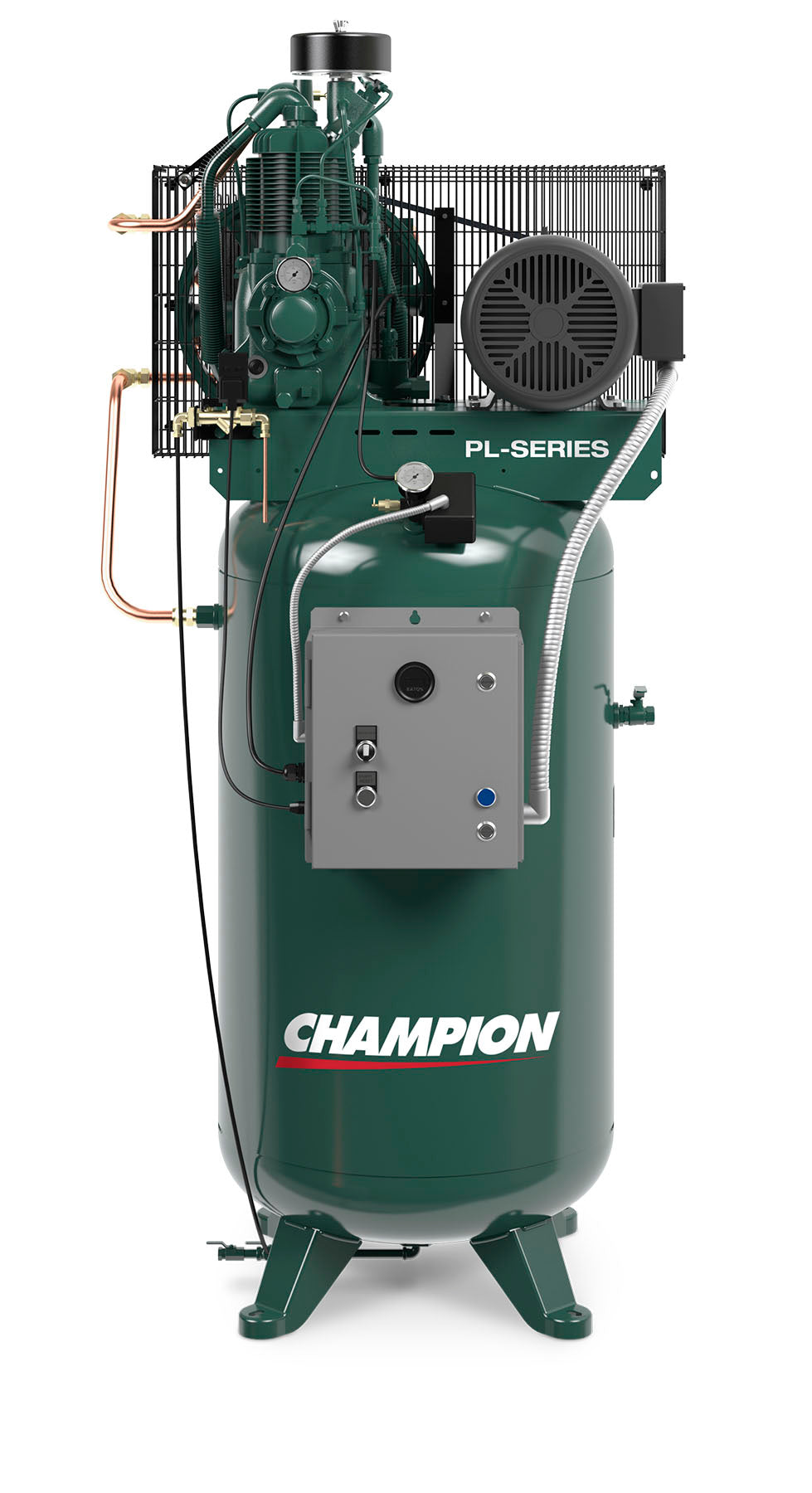

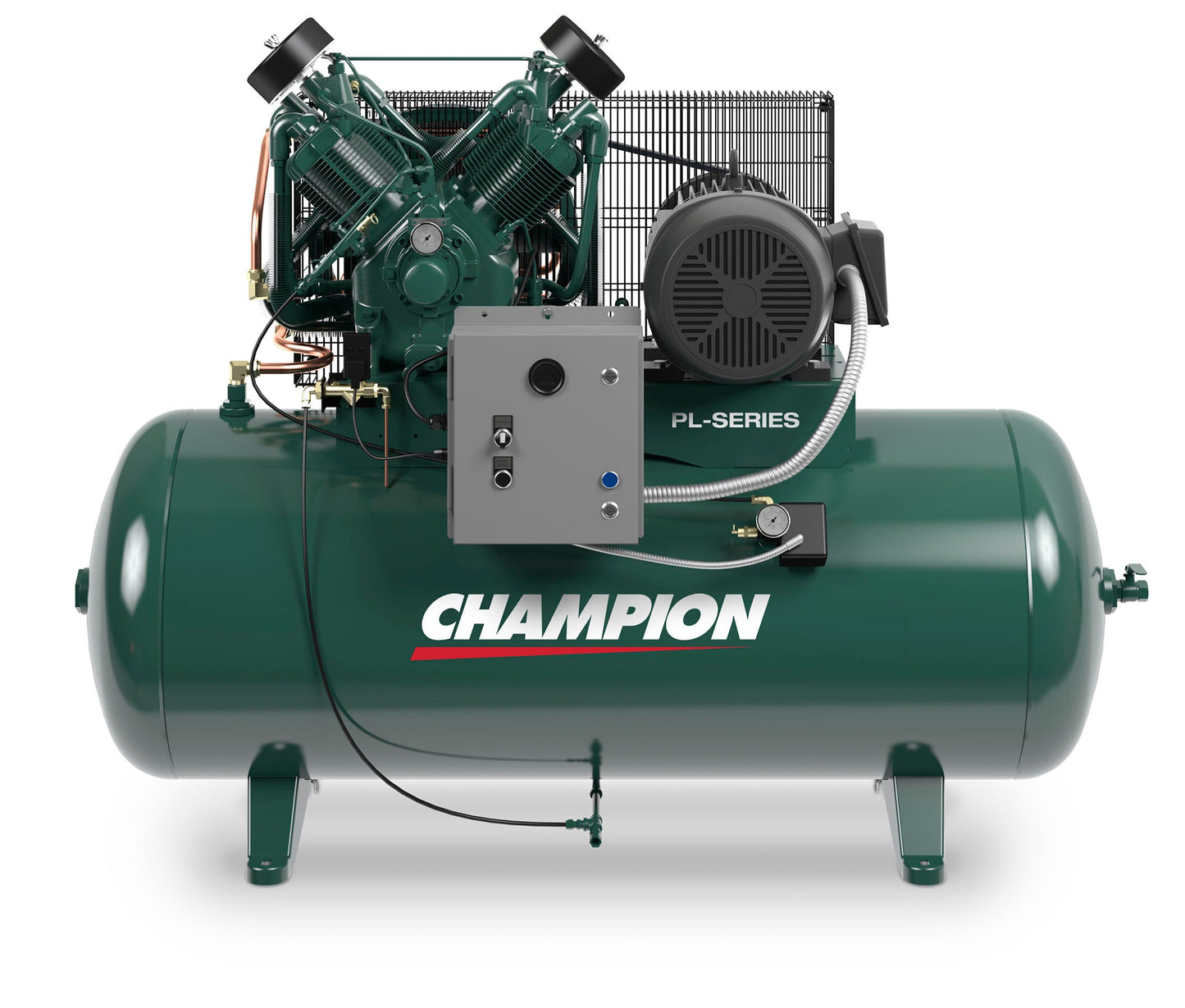

Champion PL-Series
Champion PL-Series
HP
Configuration
Tank Configuration
Tank Size
Voltage
Capacity (at 175 PSI)
Configured Part No. SKU: BPL5
Couldn't load pickup availability
Local Service Available on All Brands
100% Secure Payment
Buy Now, Pay Later
Free Returns & Exchanges
PL-Series Lubricated Reciprocating Compressor
Two Stage, Pressure Lubricated (3-30 HP)
Champion PL-Series pressure lubricated compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the PL-Series compressors the solution to your application. They deliver high performance, long life and tremendous value. Champion compressors are the proven choice.
Specifications and Features
- Power: 3 - 30 HP
- Pressure: Up to 250 psig
- Air Flow: 9.7 - 202 ACFM at 175 PSIG (electric driven units)
- Mounting: Tank or Base Mounted, Simplex, Duplex and Engine Driven Models
- Pumps: Two-Stage Pressure-Lubricated Pumps
- Loadless auto stop/start
- Warranty: 3-year Pump Warranty and 1-year Package Warranty
- Factory filled with AEON lubricant
- Available Voltages:
- Single phase: 115/208-230
- Three phase: 208/230/460/575
Standard Features
- Load-less starting (via hydraulic unloader) for lower energy costs and less wear on drive motor
- ASME inter-stage pressure relief valve for protection
- ODP NEMA 1760 RPM electric motor
- 10 Micron industrial grade intake filter
- ASME coded receiver
- 0-300 PSIG air pressure gauge on tank
- Available voltages
- Single phase-115/208-230
- Three phase-208/230/460/575
Available Options
- Multiple tank sizes and variations
- Electric or engine driven
- NEMA 4 full-voltage starter upgrade
- ODP HE/TEFC/TEFC HE motor upgrades
- Control panel upgrades
- Aftercooler
- Air-cooled with or without moisture separator - Water-cooled with or without moisture separator
- Low oil level monitor (NEMA 1 or 4)
- Low oil pressure switch (NEMA 1 or 4)
- Dual control
- Vibration isolators
- Synthetic lubricant
- High temperature switch (NEMA 1 or 4)
- Available switches (NEMA 1 or 4)
- Hand/Off/Auto
- Off/On
- Automatic tank drain
- Electric
Benefits
- Pressure lubrication - crankshaft and connecting rod bearings are pressure lubricated for extended life
- Integral cylinder/head design for trouble-free operation
- Disc valves and an oil pump that provides lubricant to all critical components
- Load-less starting via hydraulic unloader
- Positive displacement oil pump
- Lubricant filtration
- Oil pressure gauge
- Babbitt bearings
- Domed pistons
