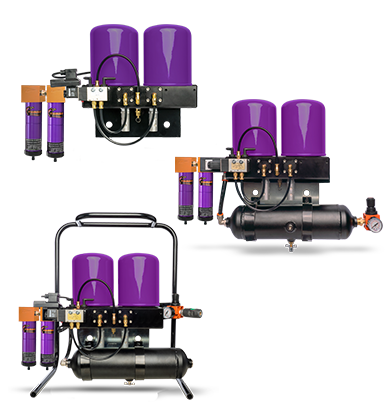

TSUNAMI PURE-5 SERIES
15 CFM COMPRESSED AIR DRYER
REGENERATIVE DESICCANT
The Pure-5 Series Regenerative Dryer is rated for 15 CFM airflow, and fitted for 5 Hp compressors. The Pure-5 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.
Features:
- 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
- Molecular Sieve Desiccant
- Solenoid Valve Timer
- Automatic Drains
- Purge Exhaust Mufflers
- Wall Mounting Brackets
- Optional: C1D2 compatible for hazardous locations
- Heater pads available for cold temp application
- 1-Gallon Storage Tank and Outlet Regulator (for tank models)
- Easy-Carrying with Portable Unit
Benefits:
- Dryer Performance:
- Low relative humidity - down to .01% RH
- Dew points down to -80��F
- Easy, low-cost maintenance - under $100/year average
- Filter Performance:
- 1st Stage Water Separator:
- Removes liquid water
- Filters particulate down to 10 micron
- 2nd Stage Oil Coalescing Filter:
- Removes bulk oils and aerosols
- Filters particulate down to .01 micron
Specifications:
- Min/Max Air Inlet Temperature: 150��F
- Min/Max Operating Pressure: 175
- Power Requirement: 120V
- Compressor Size Rating: 5 Hp
- Tank Model: 1-Gallon Storage Tank
Replacement Parts:
- Water Separator: #21999-0390
- Replacement Element for Water Separator: #21999-0846
- Oil Coalescing Filter: #21999-0390-Z-FD
- Replacement Element for Oil Coalescing Filter: #21999-0394
Air Consumption Averages and Cycle Time:
| Item # | # of Towers | Orifice | CFM Consumption | Cycle Time | Tower Drying Time | # of Towers Drying | # of Towers Regen. |
| 21999-1105 / 1100 | 2 | .018" | 1 | 2 min | 120 sec | 1 | 1 |
| 21999-1105-MM | 2 | .018" | 1 | 2 min | 120 sec | 1 | 1 |
