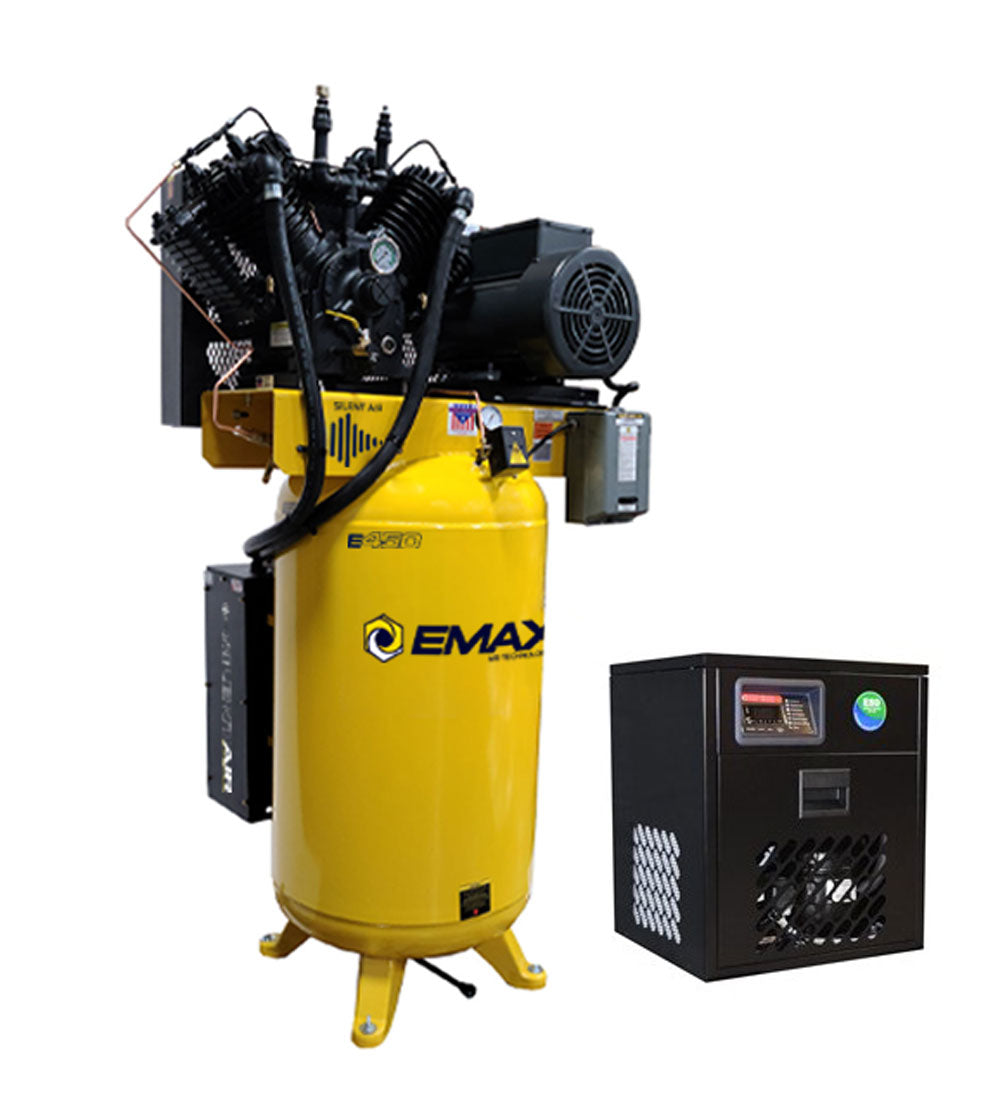

EMAX Silent Air Industrial 7.5HP 31CFM 1- Phase 2-Stage 80 Gal. Vertical Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Continuous Run, Auto Drain, Bundled w/ 30CFM Refrigerated Air Dryer

Riser

Our pump mounting plate riser is designed to raise the pump, allowing 360-degree airflow from the flywheel to cool the pump oil reservoir. Pump mount risers also allow air to flow under the pump for maximum cooling.

Continuous Run/Dual Control

Dual Control

Dual control allows users to run the unit with automatic start/stop control or the optional continuous run setting during high-duty cycle peak demand periods.

Optional Settings

The optional continuous run setting allows the pump to cool internally and save the electric motor and magnetic switch from excessive frequent starting and stopping of the electric motor.

Pressure Lube

Pressure Lubrication is the second type of lubrication system. This system is more technically advanced and a far more precise method to deliver oil to critical parts of the pump, resulting in longer pump life. The oil is pumped through an oil filter and into the pump where it is then recycled and reused. Since the oil pump is delivering the oil more efficiently, the viscosity of the oil is less critical than with a splash system. In the air compressor industry, it is typically more costly to upgrade to pressure lubrication systems.

Silent Air

Noise Reduction

Our Patented Silent Air system works by dissipating compressor intake noise through a series of noise cancellation plates, reducing DBA ratings by up to 50%. Silent air compressors operate at a normal conversation level in comparison to traditional compressors that operate at the level of a police siren.

Air Filtration

This low-profile system not only makes the compressor quieter but also adds four levels of air filtration.

Silent Air Technology

• Significantly lowers the risk of hearing damage
• Decrease in employee turnover
• Enhances workplace satisfaction

Tensioner

Piston

Piston compressors come optional with a belt tensioner. This belt tensioner allows you to easily and quickly tighten your belts. These tensioners also have a double bolt tension device that allows you to keep the belts in perfect alignment. No pry bars needed to tighten your belts!

Rotary

All Rotary Screw belt driven models 5HP – 20HP include an automatic spring-loaded belt tensioning device. This keeps a steady pressure for optimal belt tension.

Auto Drain

Operation

A dual timer electric auto drain is a device designed to expel moisture and water from the air receiver tank.

Interval Setting Feature

It has an adjustable interval setting feature that allows you to set the device from 1 to 45-minute drain cycles. You can also set the timing of how long you want the drain to stay open.

Muffler Included

Our premium series compressors Include an air muffler for quiet dispensing of water.

Package

Air Dryer

We include the air dryer for removing moisture from your compressed air.

Prefilter

All our air dryers have a built-in prefilter at .001 micron and an acting coalescing prefilter at .005 micron.

Belt Drive

Our belt-driven compressors are driven by V belts that allow you to adjust the pump speeds by changing pulley sizes.

Piston Warranty

Eaton Compressor backs all our piston air compressors with the best extended warranty in the industry. With our extended warranty, we don’t ask you to buy a service plan, we just ask that you purchase and use our oil and filters. This ensures the correct oil and filters are being used, to keep your piston air compressor running for years to come. We have 3 different extended warranty options to choose from so you can pick what best suits your company’s needs. Make sure to research and ask questions when comparing warranty information. Be certain, when you buy, that you are getting a full warranty. Our trained service and support team is ready to assist you if you ever need them, and we carry a full line of air compressor replacement parts.

Tech Specs
