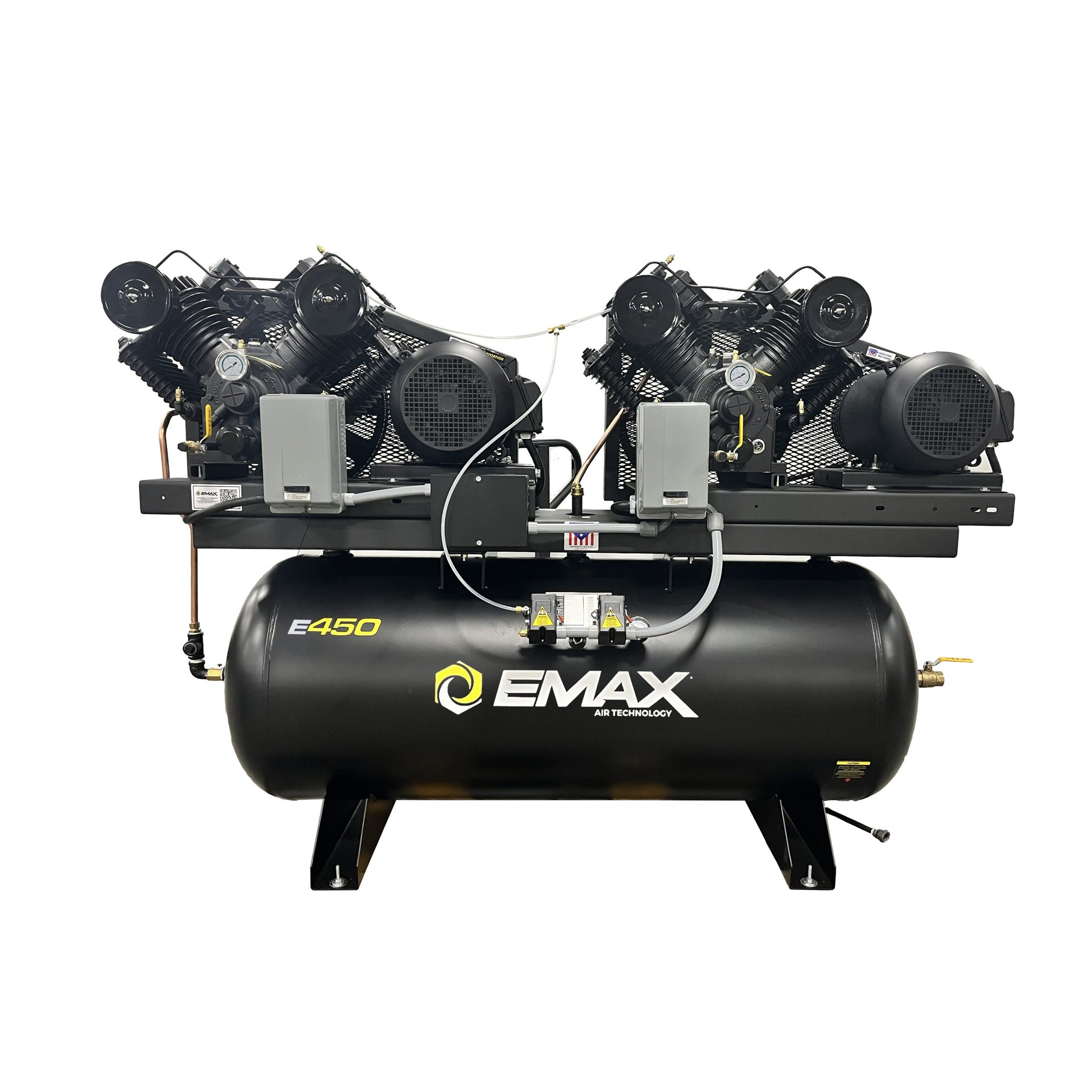

EMAX DUPLEX 7.5HP/ 15HP V4 62CFM 3 Phase 208/230V Full Pkg-2-Stage 120 Gal. Horizontal Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Auto Drain, alternating switch

EMAX DUPLEX 7.5HP/ 15HP V4 62CFM 3 Phase 208/230V Full Pkg-2-Stage 120 Gal. Horizontal Stationary Electric Air Compressor-W/ Pressure Lube Pump , Isolator Pads, Belt Tensioner, Auto Drain, alternating switch

Online Chat
In stock
Regular price $7,907.25
Regular price Sale price $7,907.25
Add to whishlist
Order by Phone
 More payment options

Local Service Available on All Brands

100% Secure Payment 100% Secure Payment
Buy Now, Pay Later Buy Now, Pay Later
Free Returns & Exchanges Free Returns & Exchanges
View full details
Description
Reviews

Riser

Our pump mounting plate riser is designed to raise the pump, allowing 360-degree airflow from the flywheel to cool the pump oil reservoir. Pump mount risers also allow air to flow under the pump for maximum cooling.

Continuous Run/Dual Control

Dual Control

Dual control allows users to run the unit with automatic start/stop control or the optional continuous run setting during high-duty cycle peak demand periods.

Optional Settings

The optional continuous run setting allows the pump to cool internally and saves the electric motor and magnetic switch from excessive frequent starting and stopping.

Pressure Lube

Pressure Lubrication is a more technically advanced and precise method to deliver oil to critical parts of the pump, resulting in longer pump life. The oil is pumped through an oil filter and into the pump, where it is then recycled and reused. Since the oil pump delivers oil more efficiently, the viscosity of the oil is less critical than with a splash system. In the air compressor industry, upgrading to pressure lubrication systems is typically more costly.

Tensioner

Piston

Piston compressors come with an optional belt tensioner, allowing for quick and easy belt tightening. It features a double bolt tension device that keeps the belts perfectly aligned—no pry bars needed!

Rotary

All Rotary Screw belt-driven models (5HP – 20HP) include an automatic spring-loaded belt tensioning device, maintaining optimal belt tension.

Auto Drain

Operation

A dual timer electric auto drain is designed to expel moisture and water from the air receiver tank.

Interval Setting Feature

This feature allows you to set drain cycles from 1 to 45 minutes and control how long the drain remains open.

Muffler Included

Our premium series compressors include an air muffler for quiet water dispersion.

Belt Drive

Our belt-driven compressors use V-belts, allowing for adjustable pump speeds by changing pulley sizes.

Piston Warranty

Eaton Compressor backs all our piston air compressors with the best extended warranty in the industry. We don’t require a service plan—just the purchase and use of our oil and filters to ensure proper maintenance. We offer three extended warranty options so you can choose the best fit for your company. Our trained service and support team is always available, and we carry a full line of air compressor replacement parts.

Tech Specs

Specification Details
Brands EMAX
HP 7.5
Tank Size 120
Voltage +/- 10% 230
Phase 3
Drive Type Electric
Tank Drain Automatic
Pump Type Pressure
CFM 62
Silent Air Y
Smart Air N
Compressor Type Piston
Motor Type TEFC
Tank Orientation Horizontal
Duty Cycle 0.6
Outlet Size 1"
Belt Count 2
Pump Stage 2
Pump Model APP4V1043TP
Pump Riser Y
Belt Tensioner Y
Mag Starter Y
Radiator N
Continuous Run Y
Peak Starting Amps 132
CFM At Max PSI 52
Pump RPM 590
Motor RPM 1740
FLA + 1.15 Service Factor 20.47
Locked Rotor Amps 132
Recommended Breaker 40
Max PSI 175
Crated Length 48"
Crated Width 46"
Crated Height 87"
Oil Capacity 2
Oil U/M Quarts
Start Type FIXED
Estimated Pump Life (Hours) 70000
Certifications ASME, CRN
Service Kit EFKIT008WBS
